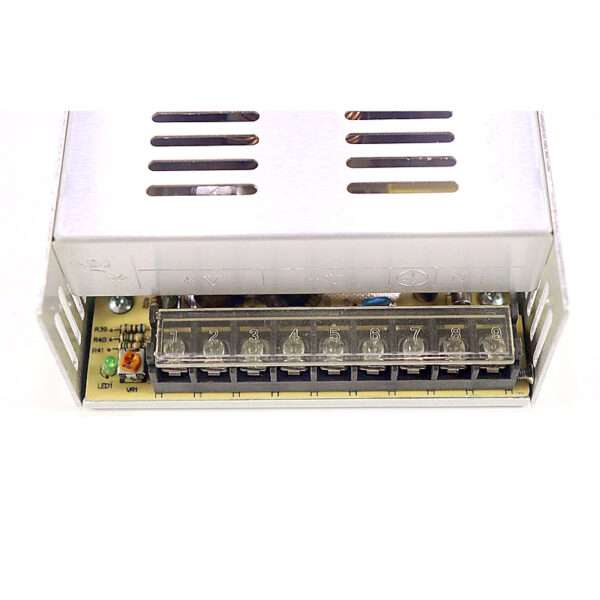

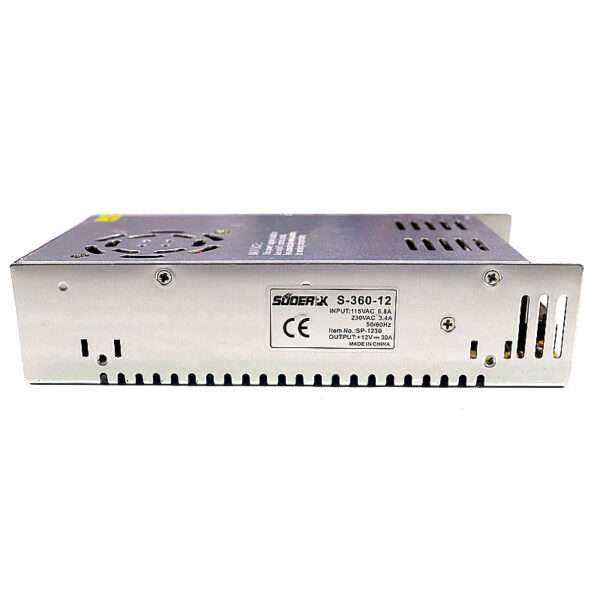

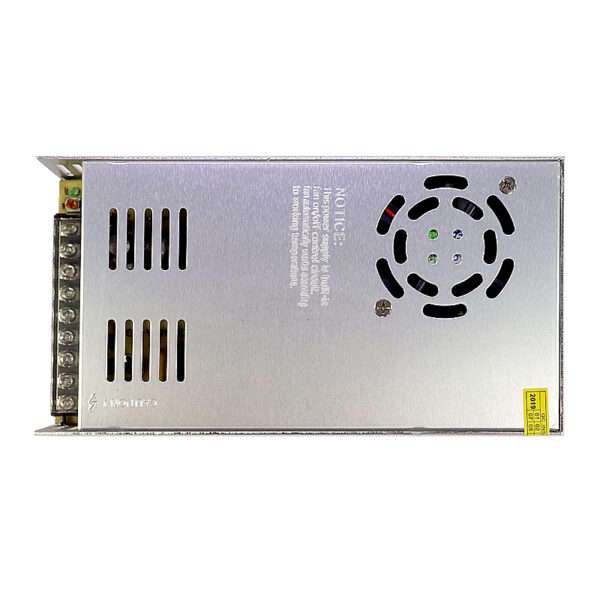

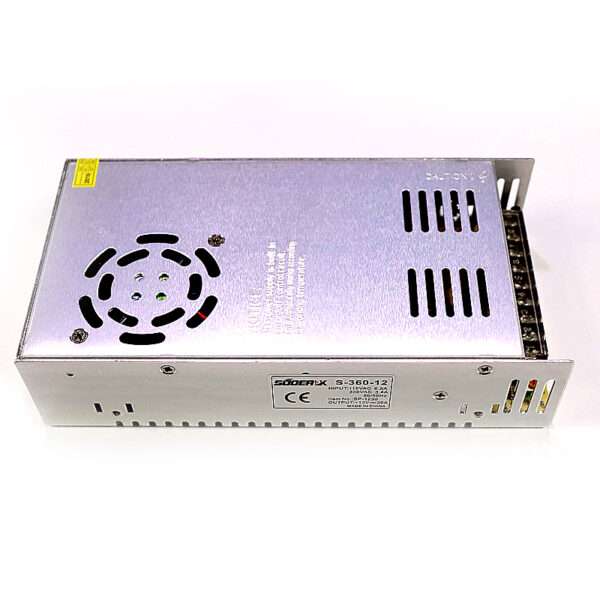

Original Suoer 30A Power Supply SP-1230 S-360-12 DC12V 360W for CNC 3D Printer Peltier Air Cooler Switching Mode in Pakistan

Availability:

Out of stock

Add to Wishlist
Share This Product Anywhere!
  • Model : S-360-12
  • DC output voltage : 12V
  • Output voltage range : ±1%
  • Rated output current : 30A
  • Output current ranqe : 0-30A
  • Wave and noise : 75mVp-p
  • Inlet stability : ±0.5%
  • Load stability : ±0.5%
  • DC output power : 360W
  • Efficiency : 83%
  • Adjustable range for DC voltage : 10.8~13.2V
  • Dimensions  : 22cm x11cm x5cm

₨ 2,850 ₨ 3,850

Out of stock

INPUT

  • AC input voltage range 170~264VAC 47~63Hz,248~370VDC
  • Input current 4.2A/115V 2.2A/230V
  • AC Inrush current Cold-start current 30A/115V 60A/230V
  • Leakage current <0.5mA/240VAC

PROTECTION

  • Overload protection 105%-150% Tvee:oulsina hiccup shutdown Reset: auto recovery
  • Over-voltage protection 120%-140%

ENVIRONMENT

  • Working temperature and humidity -10°C~+60°C,20%~90%RH
  • Store temperature and humidity -20°C~+85°C,10%~95%RH
  • Temperature coefficient ±0.03%/°C(0~50°C)
  • Setup, rise, hold up time 200ms,100ms,20ms
  • Vibration 10~500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axes

SAFETY

  • Withstand voltage Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA
  • Isolation resistance input and output internal’lnput and enclosure,Output and enclosure:500VDC/100MΩ

STANDARD

  • Safety standards Meet UL 1012 requirement(Not apply for the mark)
  • EMC standards Meet FCC PART15 J Conduction class A
Package included:
1 x Supply
