TPA3116D2 XH-M543 Dual-Channel Stereo High Power Digital Audio Amplifier Board in Pakistan

Availability:

Out of stock

Add to Wishlist
Share This Product Anywhere!
  • Model: XH-M543

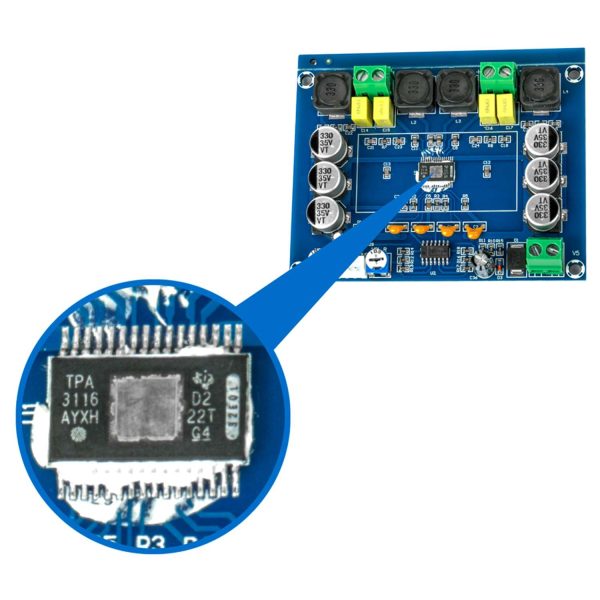

  • Chip type: TPA3116
  • Working voltage: DC12-26V
  • Output power: 2*120W MAX, DC12V, 2*50W,DC24V, 2*120W
  • Signal to noise ratio: 100db
  • Channel: Dual channel stereo

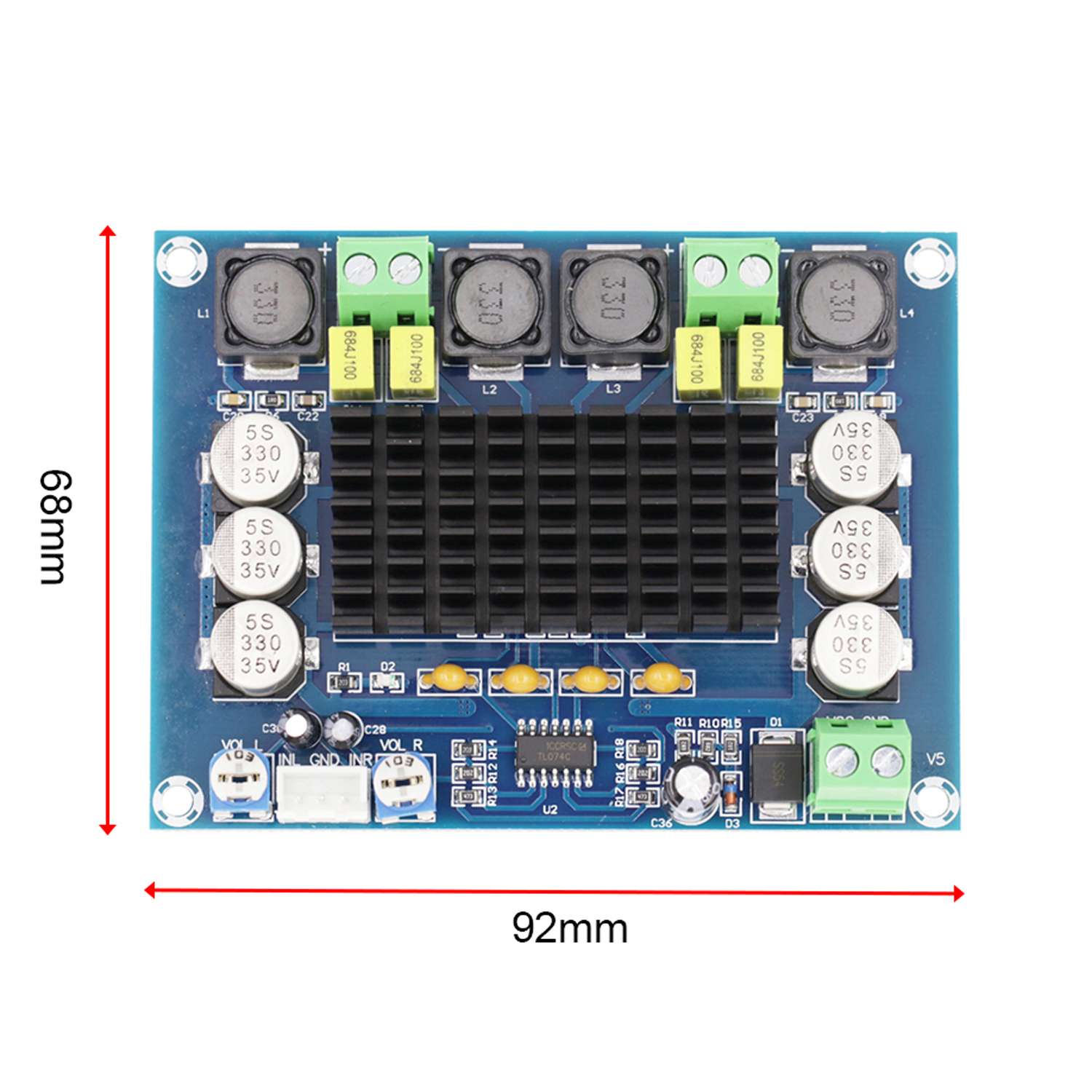

  • Size: 92*68*16mm
  • Weight: 68.6g
  • Class: D

₨ 1,650 ₨ 2,250

Out of stock

Features:
-Onboard front-facing IC to improve the input sensitivity, high-definition sound quality.
-Efficient Class D operation, with over 90% power efficiency and low idle loss characteristics, advanced modulation system configuration, multiple switching frequencies, AM interference prevention
-TPA3116 Advanced Oscillator/PLL Circuit adopts multi-switching frequency options to suppress AM interference, and when combined with master-slave mode options, multiple devices can be synchronized.
-TPA3116 devices provide comprehensive protection against short circuit, overheating, overvoltage, under voltage and -DC faults. If overload, the device will report the failure to the processor to avoid damage to itself.
Package included:
1 x TPA3116D2
