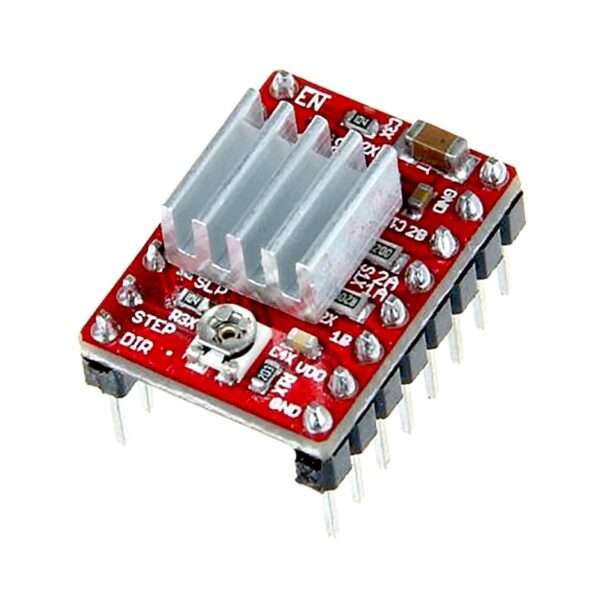

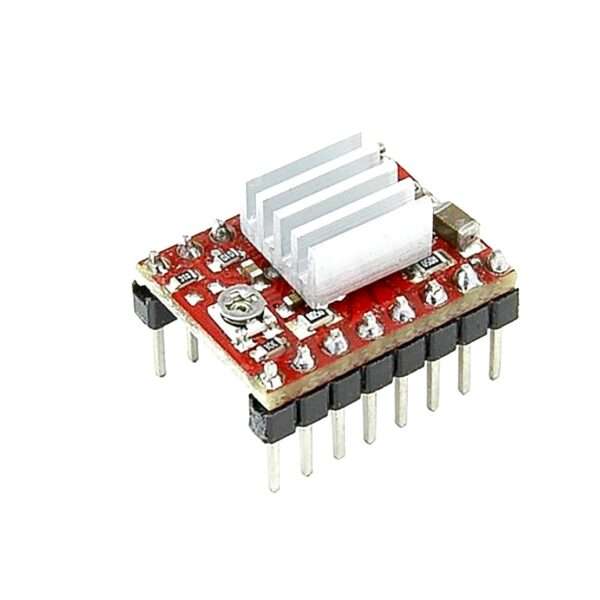

Stepper Motor Driver A4988 3D Printer Step Stick Carrier Reprap 4-layer PCB RAMPS in Pakistan

Availability:

41 in stock

5 Already Sold

Share This Product Anywhere!
  • Simple step and direction control interface
  • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Can interface directly with 3.3 V and 5 V systems
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  • Short-to-ground and shorted-load protection
  • 4-layer, 2 oz copper PCB for improved heat dissipation
  • Exposed solder able ground pad below the driver IC on the bottom of the PCB
  • Module size, pin out, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information)
  • Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • 45 V maximum supply voltage
  • Built-in regulator (no external logic voltage supply needed)

140 250

41 in stock

Introduction:
This product is a breakout board for Allegro’s A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection; please read the A4988 datasheet carefully before using this product. This stepper motor driver lets you to operate bipolar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes, with an output drive capacity of up to 35 V and 2 A.
The translator is the key to the easy implementation of the A4988. Simply inputting one pulse on the STEP input drives the motor one microstep. There are no phase sequence tables, high frequency control lines, or complex interfaces to program.The A4988 interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.
Feature:
Simple step and direction control interface;
Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step;
Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated;
Voltage to achieve higher step rates;
3.3 and 5 V compatible logic supply
Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay);
Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection;
Short-to-ground and shorted-load protection.
b2

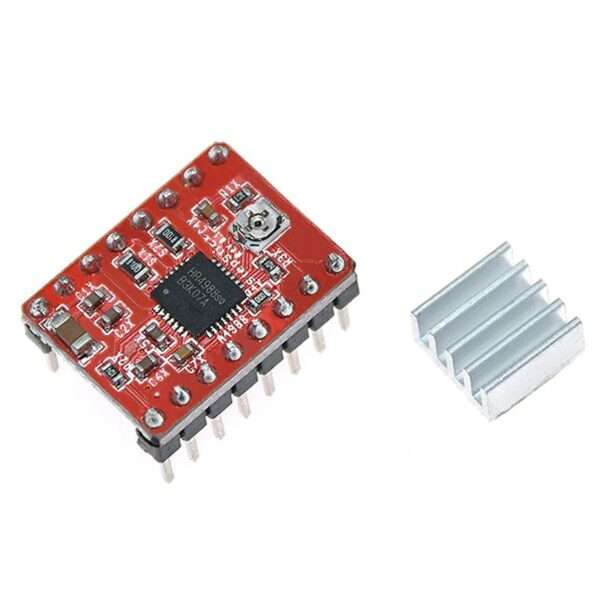

Package included:
1 x Driver
1 x Heatsink
