Original Suoer 30A PWM Solar Charge Controller ST-C1230 Smart Digital 12V/24V DC in Pakistan

Availability:

Out of stock


Share This Product Anywhere!
  • To adapt to the battery : 12V/24V,battery<16V:12V,Battery>18V:24V
  • Maximum charging voltage : 12V:18-24V Standard specifications solar panels(24V battery*2)
  • Maximum charging current : 30A
  • Maximum charging voltage : Low:14.2V,Default:14.5V,High:15.2V
  • The largest output current : 35A
  • Low voltage protection voltage : 10.5V(24 battery*2)
  • Low pressure recovery voltage : 12.5V(24 battery*2)
  • Load overload automatic recovery : 30S
  • Double USB output : 5V 2.1A
  • Load relating to open time : 0-24 hours can choose
  • Infrared remote control distance : >5m
  • Dimensions : 21cm x 12xm x 4cm

 3,300  4,100

Out of stock

  • Clock timing function
  • Built-in two 5V 1A USB interfaces
  • Ultra Low Power Consumption
  • Built-in IR self-learning infrared remote control to control the DC loads
  • Direct liquid crystal display(LCD)
  • Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)
  • Light control mode,Time control mode

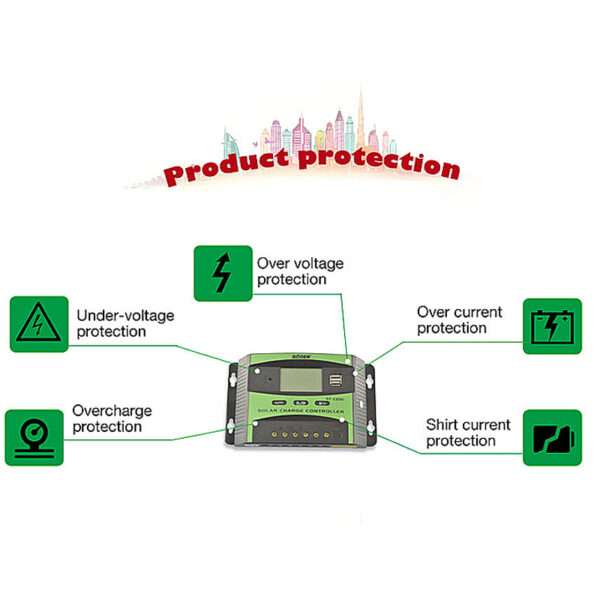

  • Reverse protection,short circuit protection

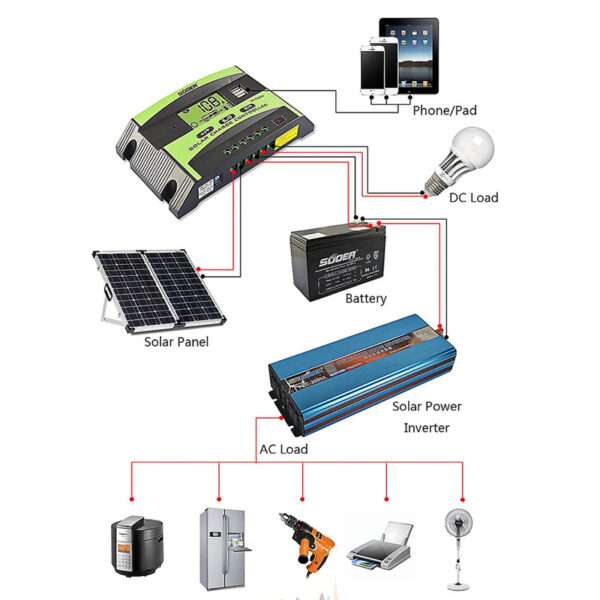

  • Designed for 12V/24V solar power system
  • Hanging style design makes it convenient to install
  • Available in 10A/20A/30A
  • Simple options,automatic memory retention of users’ settings
  • Convenient charging voltage switching,save complex Menu settings,automatic memory user settings
  • Built-in charging current limiting protection,without having to worry about solar panels power up too much damage control and battery system.
  • There are several common working mode of PWM solar controller:
  • Button Mode (Manual switching load)
  • Light Controlled Mode (Load switch is controlled by solar panels photosensitive control and timing control)
  • Light control turn on delay off mode
  • Circulation model (With Clock Function)
  • 0-24 hours optical mode,switch,wireless remote control mode,etc load mode optional
Package included:
1 x Solar PWM Contoller
