Original Suoer 20A Charger MH-1220A 220VAC to 12V Digital Auto Fast Battery Charging for Lead Acid/ AGM/ Gel Battery in Pakistan

Availability:

Out of stock


Share This Product Anywhere!
  • Model: MH-1220A
  • 20A to 200A Battery Support
  • 4A – 20A Charging Current
  • Reverse Polarity Protection
  • Short Circuit Protection
  • Over Temperature Protection
  • Input voltage : 180V/240V
  • Max charge voltage : 15V
  •  Max charger current : 20A
  • Rated input Current : 220V
  • Display method : Digital
  • AC input frequency : 47~63HZ
  • Charging mode : Three-phase
  •  Full load efficiency : >90%

 6,400  8,500

Out of stock

  • Car Engine start function
  • Battery auto fix feature
  • LCD screen display(Charging time, Temperature, Charging current/voltage, Battery capacity)
  • Adjustable charging current 4A/8A/12A/20A/30A/40A
  • Reverse connecting protection
  • Three phase charging mode
  • OEM&ODM are acceptable

Features:
 3 Phases Automatic Charging

  • 3 phases charging is automatically proceeded. And, automatically stops charging when the battery is full.
  • You can leave the charger connected to the battery indefinitely without the risk of overcharging.
  • Once the battery is full, the charger monitors the battery voltage and intermittent to float charging the battery.

Compact and convenient

  • Small and light as we adopt the switch mode technology Or we call Switching Power Supply, this is different from Linear Power using in traditional charger.
  • More than 85% electric energy was transferred to battery chemical energy during charging process comparing with 40% of conventional charger. The tech is suitable for all types of batteries (Wet, Maintenance Free, VRLA, AGM, Gel, etc.)

Digital Display and More Protection

  • LCD display screen – This product is built with a LCD display screen which can display the charging current during the battery is charging.
  • Reverse polarity protection – When the charger is not charging state, the output clips polarity connect reversely ,then the charger will enter the protection model ;it does not have any adverse impact on the performance of the charger.
  • Short circuit protection – If the clips are connected each other, the charger will enter the protection mode when the short circuit occurs ,And this would not damage the charge at all.
  • Over-temperature protection – When the charger works in an environment of high temperature, after some time of continuous working ,temperature inside the machine will increase to enter the over temperature protection mode, the output current is reduced ;it does not have any adverse impact on the performance of the charger.

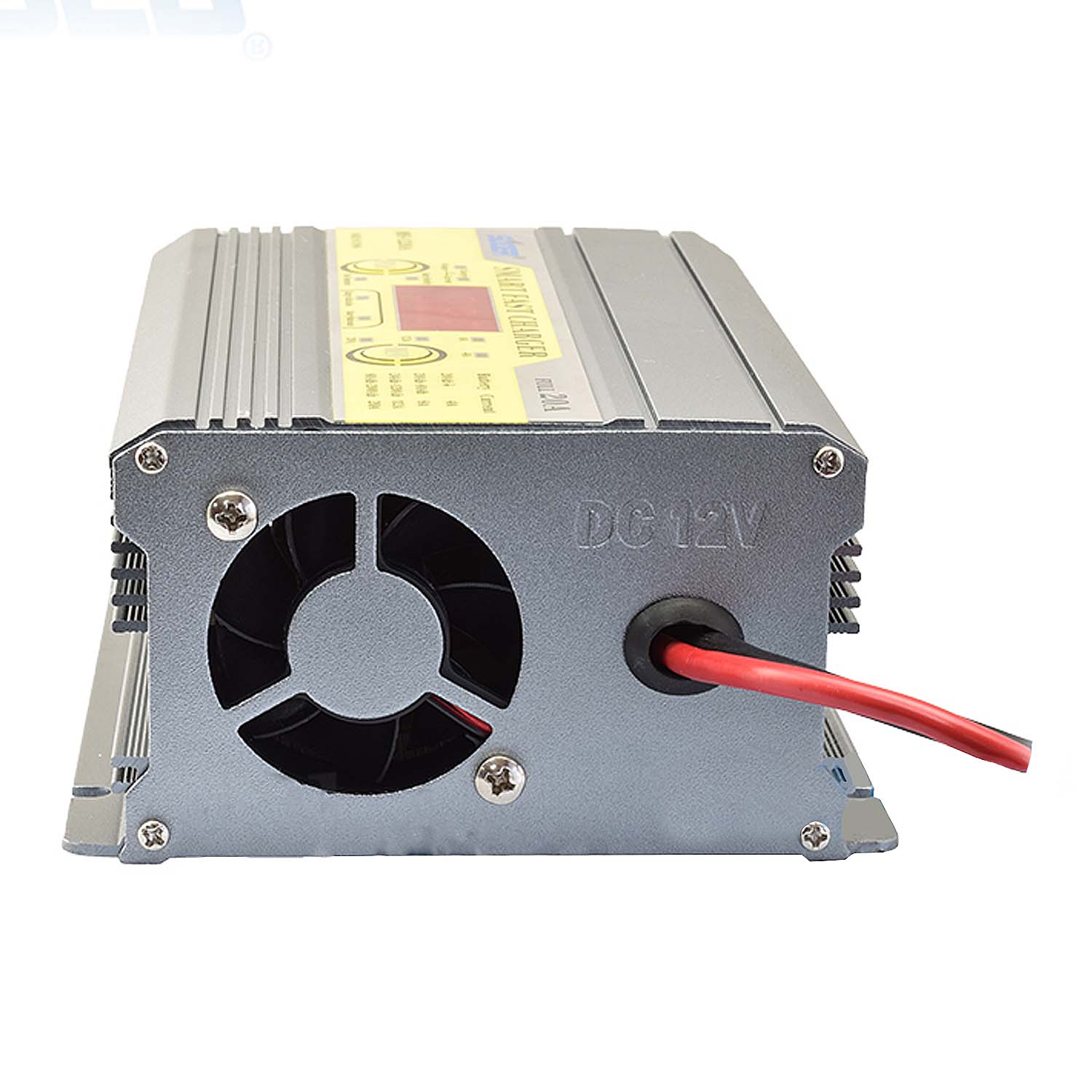

  • Fan Ventilation function – In the normal charging process, the cooling fan will auto turn on when the detected internal temperature exceeds 45℃ or the charging current is larger than 1.6A;and it will auto be turned off when the detected internal temperature is less than 40℃ or the charging current is less than 1A.

Maintain battery and recover it’s capacity

  • Pulse and reverse pulse charging technology is applied.
  • The charger generates pulse and reverse pulse to reduce battery impedance, gassing and temperature rise, restore the sulphate into liquid to recover battery capacity.
  • So that the charger can maintain battery and prolong its lifetime.

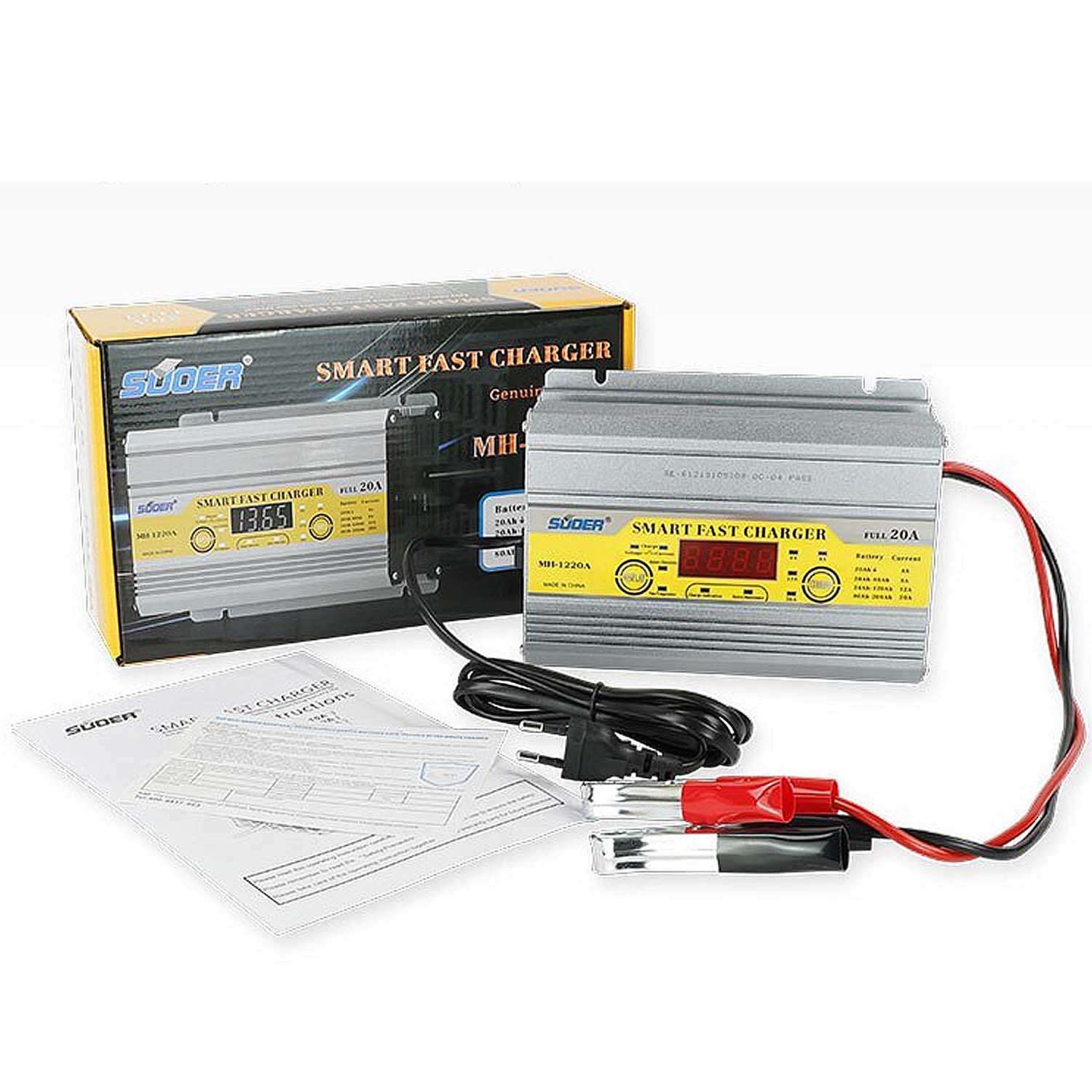

Package included:

1 x Charger
