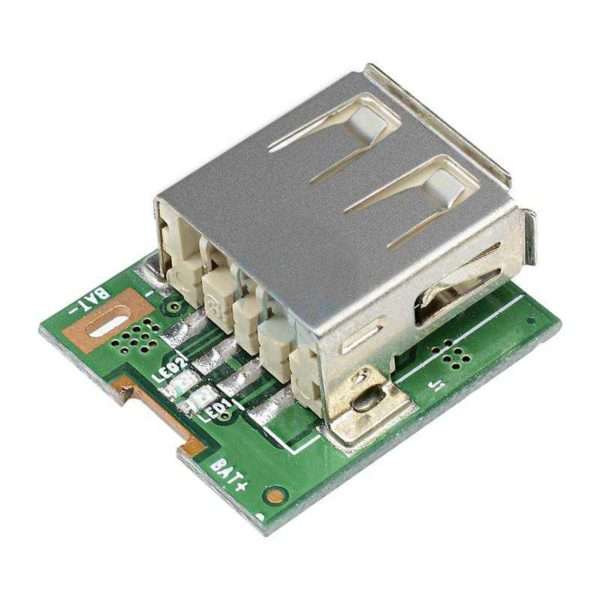

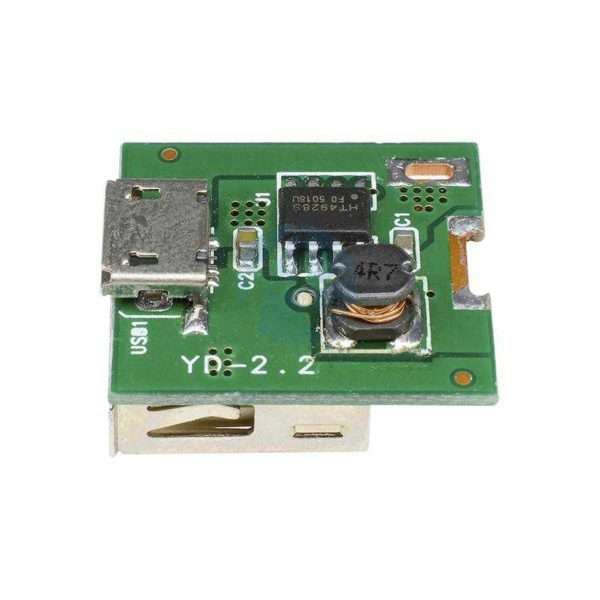

Micro USB Charger 5V Power Bank Module Circuit Lithium Battery 18650 Charging Protection Board in Pakistan

Availability:

Out of stock


Share This Product Anywhere!
  • Input Voltage : 3.7V~5.5V
  • 2.Charging Current : 1A(max)
  • 3.Output Current : 1A(max)
  • 4.Output voltage : 5V
  • 5.BAT Discharging Stop Voltage : 2.9V
  • 6.Discharging Efficiency:85%(input 3.7V output 5V/1A)

 70  120

Out of stock

1.Charging and discharging indication
2.Internally installed charging and discharging power MOS
3.Preset 4.2V charging voltage, precision ±1%
4.Max 8uA standby current
5.Integration charging management and discharging management
6.Intelligent temperature control and over temperature protection
7.Integration output over voltage protection,short circuit protection,overload protection
8.Integration overcharging and over discharging protection
9.Support trickle mode and zero voltage charging

Package included:
1 x Module
