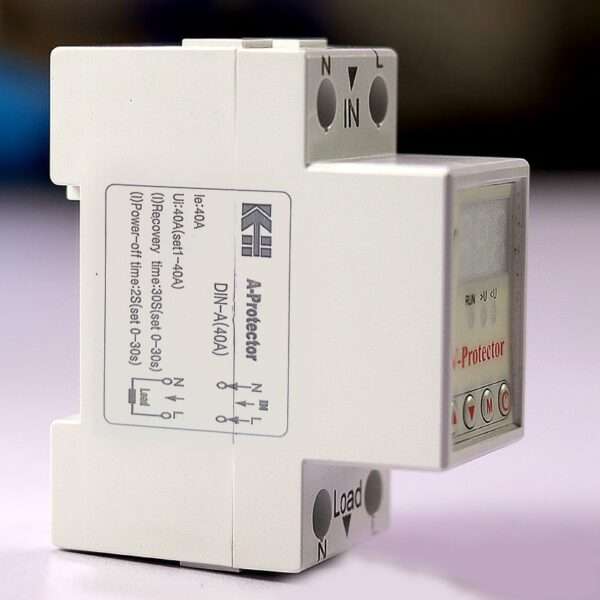

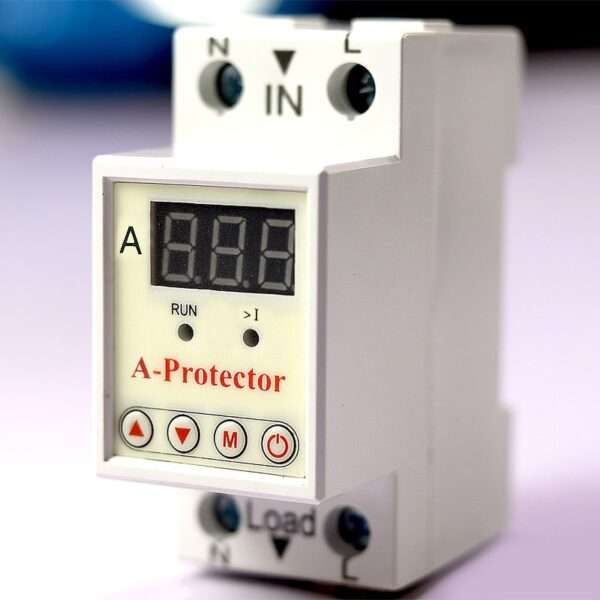

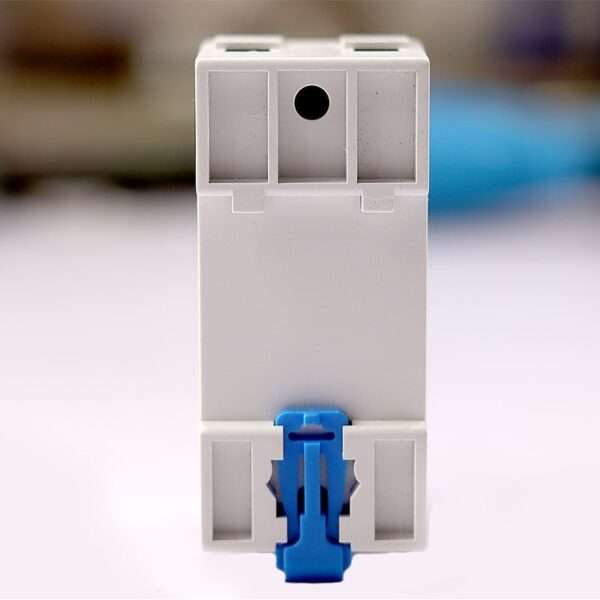

40A 230V Adjustable Ampere Over Protector Relay Breaker with Over Current Protection in Pakistan

Availability:

1 in stock

0 Already Sold

Share This Product Anywhere!
  • Item : DIN-V (40A)
  • Le : 40A
  • A : 40A (set1-40)
  • (A) Recovery time : 30S (set 0-30s)
  • (A) Power-off time : 2S (set 0-30s)

2,000 3,350

1 in stock

  • Electrical Parameter:
  • Rated working voltage : AC 230V/50Hz
  • Rated working current : 40A
  • Maximum short circuit withstand current 3000A below 40A, 4500A above 50A (action time 10ms)
  • Over Ampere protection value : 5-60A or  1A-40A
  • Automatic closing delay : 0-30s , factory default 30s
  • Action time : 0-30s , factory default 30s
  • Own power consumption : ≤ 1.5w
  • Motor mechanical life : ≥ 100,000 times
  • Dimensions : 80*37*66mm (L*W*H)
  • Working environment temperature range : -25 C – 55 C
  • Relative humidity : 45-90% RH, 40C
  • Altitude : ≤ 2000m
  • Pollution level : 2 Class
Package included:
1 x Breaker
1 x User Manual
SKU: 40A AMPERE ADJUST OVER UNDER BREAKER Category: Tags: , , , , , , , , ,
