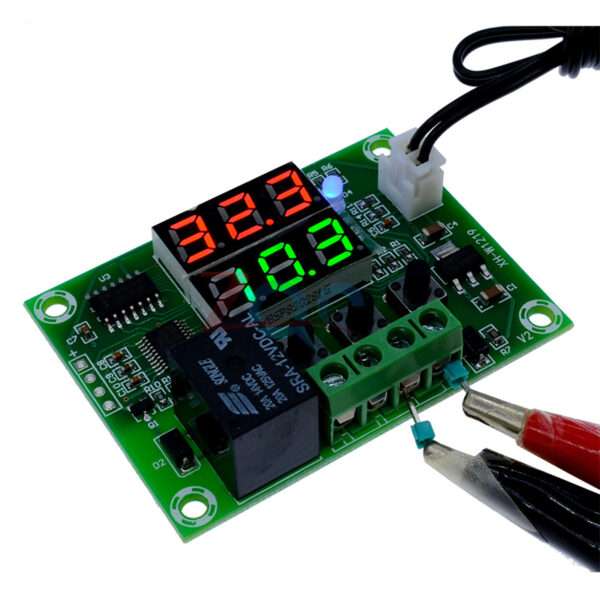

XH-W1219 DC 12V Dual LED Digital Display Thermostat Temperature Controller Regulator Switch Control Relay NTC Sensor Module in Pakistan

Availability:

17 in stock

0 Already Sold

Share This Product Anywhere!
  • Power Supply: DC12V
  • Relay Current: <50mA
  • Dimensions: 47*40mm

600 1,000

17 in stock

Instructions:
1. Please pay attention for your first use. You need wait 6s after your setting data, the module will save the date you have set after 6s.
2. Short press button SET: If you start the time setting mode , Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait 5s after your setting date, the module will save the date you have set after 5s
3. Long press button SET: if you start the parameter setting mode. There are two group parameter for your choice : P0 and P1. You could switch P0 or P1 by short press SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button-.P0–0: timing mode is 0–999 seconds
P0–1: timing mode is 0–999 minutes
P0–2: timing when the pattern is 0–999
P1–0: T1 time delay relay (T1 timer)
P1–1: T1 delay time relay releases (T1 timer)
P1–2: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timing) ends.
P1–3: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timing) ends.
P1–4: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timer), repeat the cycle.
P1–5: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timer), repeat the cycle.



 Package included:
1 x DC12V W1219 Module
