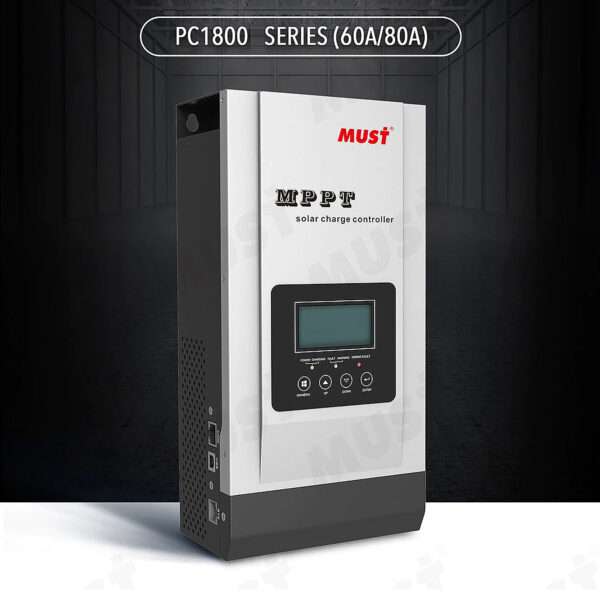

Original Must MPPT Solar Charge Controller 60A/80A PC1800 Smart Digital DC 12V/24V/36V/48V in Pakistan

• MPPT Solar Charge Controller
• Model Name: PC1800
• MD: PC18-8015F
• Rating Current: 80A
• Protection Degree: IP 20
• Battery Voltage: 12VDC/24VDC/36VDC/48VDC
• Min. Solar Voltage: 15VDC for 12VDC battery system
• 30VDC for 24VDC battery system
• 45VDC for 36VDC battery system
• 60VDC for 48VDC battery system
• Max. Solar Voltage: 100VDC for 12VDC battery system
• 145VDC for 24/36/48VDC battery system
• Operation Temperature Range:-10°C~55°C

MODEL	PC18-6015F		PC18-8015F
Nominal Battery System Voltage	12V/24V/48VDC (Auto detection); 36V(setting)
CONTROLLER INPUT
Battery Voltage	12V	24V	36V	48V
Maximum Solar Input Voltage	100V	145V
PV Array MPPT Voltage Range	15-95V	30-130V	45-130V	60-130V
Max PV Input Power(12V)	938W		1250W
Max PV Input Power(24V)	1875W		2500W
Max PV Input Power(36V)	2813W		3750W
Max PV Input Power(48V)	3750W		5000W
BATTERY
Charging Set points	Absorption Stage		Float Stage
Flooded Battery	14.2V/28.4V/42.6V/56.8V		13.7V/27.4V/41.1V/54.8V
AGM/Gel/LEAD battery (Default)	14.4V/28.8V/43.2V/57.6V		13.7V/27.4V/41.1V/54.8V
Over-charging voltage	15.5V/30.0V/45.0V/60.0V
Over-charging comeback voltage	14.5V/29.5V/44.5V/59.0V
Battery defect voltage	10.0V/17.0V/25.5V/34.0V
Temperature Compensation coefficient	-5mv/°C /cell (25°C vef)
CHARGING
Peak Conversion efficiency	98% (MPPT Efficiency 99%)
Max Charging Current	60 amps continuous @ 40°C ambient		80 amps continuous @ 40°C ambient
GENERAL SPECIFICATION
Radiating mode	Fan cooling
DISPLAY & PROTECTION
Protections	Solar high voltage disconnect; Solar high voltage reconnect; Battery high voltage disconnect; Battery high voltage reconnect; High temperature disconnect; High temperature reconnect.
MECHANICAL SPECIFICATIONS
Mounting	Wall mount
Machine Dimension(W*H* D)	152*100*294mm (per pcs)
G.W(Kg)	4Kg/pcs
Package Dimension(W*H* D)	612*308.2*235.6mm (5pcs/Carton)
Gross Weight(Kg)	17.4Kg(per Carton)		19Kg(per Carton)
OTHER
Environmental Rating	Indoor
Operation Temperature Range	-25~55°C
Ambient humidity	0~90% relative humidity(non-condensing)
Altitude	≤3000m

Package included:

1 x Solar MPPT Controller
1 x USB Cable
1 x BTS Cable
1 x User Manual
