Why Solar Panel Protection Needs A Junction Box And DC Breaker Leave a comment
You probably have invested a lot of time selecting the perfect panels, batteries, and inverters for your solar installation. But there is one component of your solar power system that does not get enough recognition, even though it silently protects your entire investment. A solar panel junction box and DC breaker are components installed between your solar panels and other systems, and omission of these components can easily result in costly repair work for a seemingly minor problem.
What Does A Junction Box Do On The Rooftop?

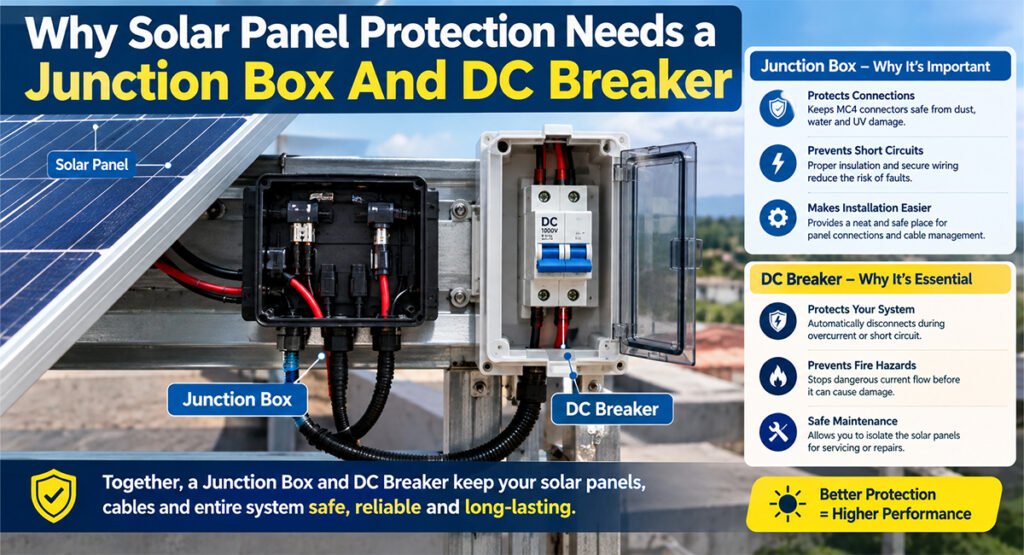

Every solar panel produces DC power which must travel somewhere. A junction box is a small sealed box that connects the internal wiring of solar panels with the wires connected to either the battery or the inverter. It is more than just a box holding your wires, as it is the place where diodes regulate the flow of current and where loose connections might otherwise be open to water, dust, and heat.
As the box will be situated outside, in most cases on the roof of the building, it will have to withstand Pakistani weather conditions without allowing moisture or dust particles to enter the electrical connections present inside it. Thus, the term solar panel junction box and DC breaker usually denotes a product that is designed to withstand outdoor conditions, and its enclosure is sealed to protect the connections from water or dust.
Why Your Panel’s Junction Box Rating Is Important
The junction boxes are not the same when it comes to their design and construction, and the information about the box type can be found on its label. You should look for a box with the IP67 protection rating, since this rating guarantees that the enclosure is protected against dust particles and any temporary water ingress to the interior of the enclosure. These boxes are usually rated to withstand higher DC voltage and currents since the panel strings can contain higher voltages than it was expected.
Using a junction box that is suitable for many watts of panels makes things easier for you in case you decide to upgrade your system in the future. Ensuring that you use the correct junction box at the start means you don’t have to worry about changing it when you add more panels to your system.
What The DC Breaker In Your Solar System Does For You
A junction box is used to protect the connections but does not necessarily interrupt any power flow on its own. It is the role of the DC breaker to automatically do this whenever there is a fault or problem, such as a short circuit, overload, or any other problem in the wiring between the panels and the battery bank.
While a normal breaker installed at home operates on alternating current, a DC breaker is a special component that is designed specifically to work with direct current, whose arc interruption properties differ greatly. A two-pole breaker, capable of operating with high voltage of DC, is used in a lot of solar power systems to be able to interrupt the voltage of a multi-panel string without any trouble, and disconnect the entire panel array if necessary.
Watching Installation Of The Component Helps Understand It
Knowing about the specification of the product is not enough. Seeing the actual DC breaker opened and explained will make you realize its place in your system and the importance of the ratings. This video demonstrates a DC breaker, designed for protection of solar, battery, and UPS systems, and is definitely worth seeing if you want to have an idea about what component you’ll buy:
What Happens When You Skip This Protection
It’s tempting to go with just anything here when your solar system is small, but bear in mind that these panels will always continue to produce some level of voltage whenever there is any degree of daylight; this includes when there is some sort of fault happening on your end. A short circuit won’t simply pop off when you have an issue without a DC breaker, leaving things open for more damage over time.
In other words, this setup of a solar panel junction box and DC breaker helps ensure that issues are handled quickly before they become too bad!
Why Pakistan’s Climate Adds Extra Pressure On These Components
If you are using the solar system in Pakistan, then your components are already facing additional stress as compared to that which was considered in the manufacturer’s datasheet. During the summer season, the temperature of the rooftop gets too hot and exceeds the moderate level for junction boxes and wiring. Moreover, the humidity due to monsoon rains makes it difficult for any seal present in your equipment to resist it.
Furthermore, load shedding increases the number of times your system switches between solar, battery, and grid power as compared to a similar system in a better climate. Each switch is the time when solar panel junction box and DC breaker comes into play because each cycle is adding extra stress on your components.
Matching The Breaker To Your System Instead Of Guessing
Before purchasing anything, find out the real voltage and current in your panel string, not simply the rating of the panel. Since wiring the panels in series increases the voltage, you might have to go above the rating of the individual panel. Ensure that the DC voltage rating of the breaker is above the open-circuit voltage of your entire system, and that the current rating is also appropriate.
It’s also wise to make sure that the junction box in your particular panel model is suitable for your system too. An undersized junction box will defeat the whole reason for getting a breaker.
How This Relates To Your Overall System
Solar panel junction box and DC breaker are not separate products in themselves, but are elements in a series along with your panels, wiring, charge controller, batteries, and inverter. In case one of these links in the chain is faulty, it exposes your entire investment to the same risks. This holds equally for a small-scale home backup system as well as a larger one driving the solar inverter and batteries.
If you are installing and expanding your solar system and have no idea what junction box and DC breaker will work with your panel system, Maaz Electronics has been working in the electronics and power systems market of Pakistan for more than 9 years and has dealt with precisely these types of protection devices. Practical and hands-on experience working with protection devices and local voltages is indeed beneficial when matching your protection devices according to your needs.
Solar panel junction box and DC breaker may not be the most thrilling aspect of installing a solar system, but it is certainly the one that ensures the rest of the system works without any failure or problem for years to come. For business inquiries, reach out at 𝐦𝐚𝐚𝐳𝐞𝐥𝐞𝐜𝐭𝐫𝐨𝐧𝐢𝐤𝐬@𝐠𝐦𝐚𝐢𝐥.𝐜𝐨𝐦.
