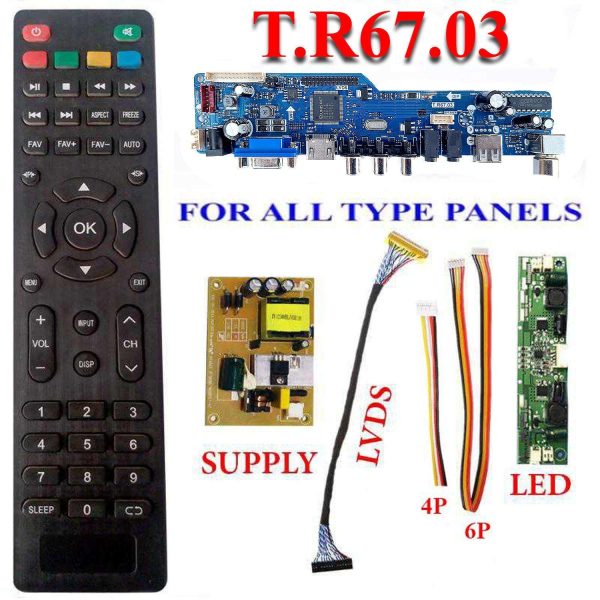

T.R67.03 Universal LCD / LED TV Board + Remote + 30 Pin LVDS Grip + LED Lamp Card + Power 6 & 4 Pin Grip + Supply in Pakistan

T.R67.03 Universal LCD / LED TV Board + Remote + 30 Pin LVDS Grip + LED Lamp Card + Power 6 & 4 Pin Grip + Supply in Pakistan

Availability:

20 in stock
  • TV System: PAL/SECAM/NTSC (RF connector different)
  • Panel Resolution: 1366X768, 1280X1024, 1920X1080, 1920X1200, etc.
  • Panel Interface: Single or Dual LVDS
  • Input Ports: PC VGA, Audio, HDMI, USB, RF tuner, AV (or YPbPr)
  • Output Ports: earphone out, audio output (optional)
  • EMC approval
  • OSD Language: English, French, Portuguese, Spanish, Thai, Russian, etc.
  • Audio amplifier: 2X3W (8 ohm)
  • USB port multimedia formats: audio, video, picture, text
  • USB supports firmware upgrade
  • Three versions: normal, Dolby version, multi-game version
  • Remote Control + 30 Pin LVDS Grip
  • LED Lamp Card + Power Supply + 4 Pin Lamp Card Grip
  • Some items Color & Design could be Different from Picture.

₨ 4,000 ₨ 4,250

20 in stock

Power supply voltage and current: DC 12V, max. 2000Ma
NOTE: Max. current doesn’t include the currents for driving TFT-LCD panel, backlight, USB port or expanded modules.
Voltage on driving panel screen: DC 3.3V / 5V/ 12V
Standby Power: <0.2W (for motherboard only)
Max. current on USB connector: 500mA

Package included:
1 x Universal Board
1 x Remote
1 x LVDS Grip
1 x LED Lamp Card
1 x 6 Pin Cable
1 x 4 Pin Cable
1 x Supply
