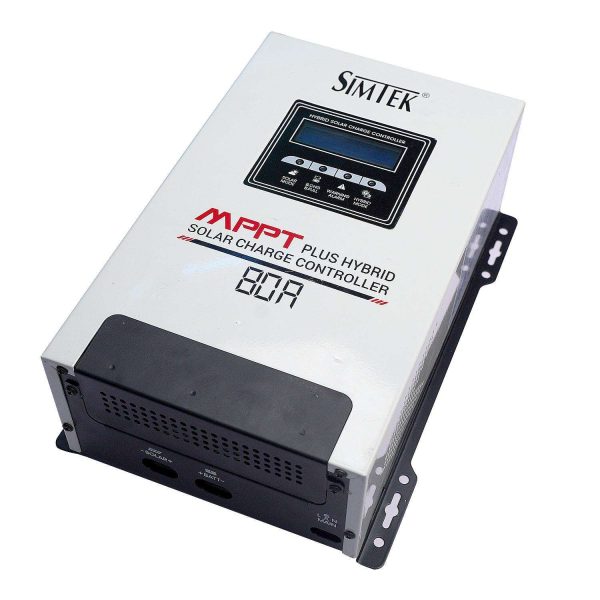

SIMTEK Hybrid MPPT Solar Charge Controller 80A Smart Digital DC 12V/24V in Pakistan

Availability:

Out of stock


Share This Product Anywhere!
  • Hybrid – Battery Charger Auto Cut Off
  • 220v Out You can Connect Charger or UPS.
  • Daylight WAPDA not Used.
  • At Evening Auto WAPDA Convert.
  • Digital display & Led battery Level indicator
  • 96% efficiency in 12-V systems and 97% efficiency in 24-v systems
  • Wide input voltage range: 15 V to 90 V
  • High rated output current: 80A
  • Over-charge and surge protections
  • System over-temperature and ambient light detection capabilities

 18,500  24,500

Out of stock

MPPT SOLAR CHARGE CONTROLLER
(HYBRID SERIES)
80A

MODEL

1224K38
12V MODE 24V MODE
MIN. OPEN CIRCUIT VOLTAGE: 30V MIN. OPEN CIRCUIT VOLTAGE : 60V
MAX. OPEN CIRCUIT VOLTAGE: 145V MAX. OPEN CIRCUIT VOLTAGE: 145V
MAX. INPUT CURRENT : 17A MAX. INPUT CURRENT:34A
MAX. PV POWER : 1500W MAX. PV POWER : 3000W
MPPT OPERATING VOLTAGE

RANGE: 220 – 145V

MPPT OPERATING VOLTAGE

RANGE: 44V – 145V

OUTPUT RATINGS
MAX. OUTPUT CURRENT: 80A
EFFICIENCY:0.87-0.94%
AUTO DETECT 12V/24V
MAX. OPERATING TEMP:80°C

Package included:

1 x Solar MPPT Controller
SKU: HYBRID SIMTEK MPPT CONTROLLER 80A Category: Tags: , , , , , , , , , , , ,
