-14%

SIMTEK Hybrid MPPT Solar Charge Controller 60A Smart Digital DC 12V/24V in Pakistan

Availability:

3 in stock

Add to Wishlist
Share This Product Anywhere!
  • Hybrid – Battery Charger Auto Cut Off
  • 220v Out You can Connect Charger or UPS.
  • Daylight WAPDA not Used.
  • At Evening Auto WAPDA Convert.
  • Digital display & Led battery Level indicator
  • 96% efficiency in 12-V systems and 97% efficiency in 24-v systems
  • Wide input voltage range: 15 V to 90 V
  • High rated output current: 60A
  • Over-charge and surge protections
  • System over-temperature and ambient light detection capabilities

₨ 22,000 ₨ 25,500

3 in stock

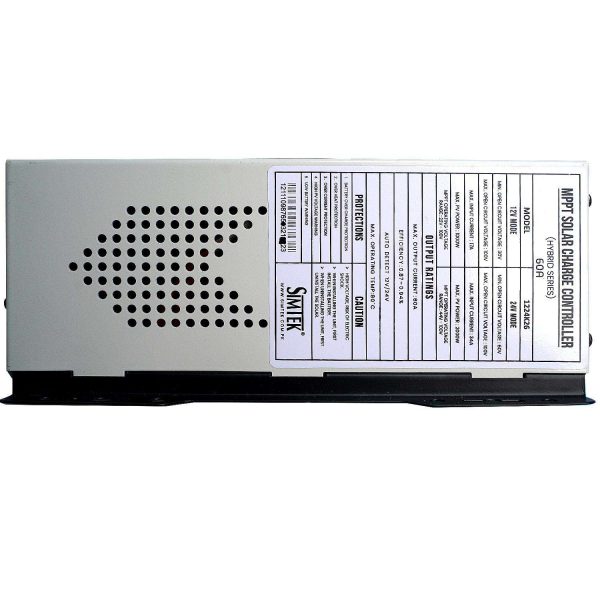

MPPT SOLAR CHARGE CONTROLLER

(HYBRID SERIES)
60A
MODEL1224K26
12V MODE24V MODE
MIN. OPEN CIRCUIT VOLTAGE: 30VMIN. OPEN CIRCUIT VOLTAGE : 60V
MAX. OPEN CIRCUIT VOLTAGE: 100VMAX. OPEN CIRCUIT VOLTAGE: 100V
MAX. INPUT CURRENT : 17AMAX. INPUT CURRENT:34A
MAX. PV POWER : 1000WMAX. PV POWER : 2000W
MPPT OPERATING VOLTAGE

RANGE: 220 – 100V

MPPT OPERATING VOLTAGE

RANGE: 44V – 100V

OUTPUT RATINGS
MAX. OUTPUT CURRENT: 60A
EFFICIENCY:0.87-0.94%
AUTO DETECT 12V/24V
MAX. OPERATING TEMP:80°C

Package included:

1 x Solar MPPT Controller
SKU: HYBRID SIMTEK MPPT CONTROLLER 60A Category: Tags: , , , , , , , , , , , ,
