MISTING ACCESSORIES

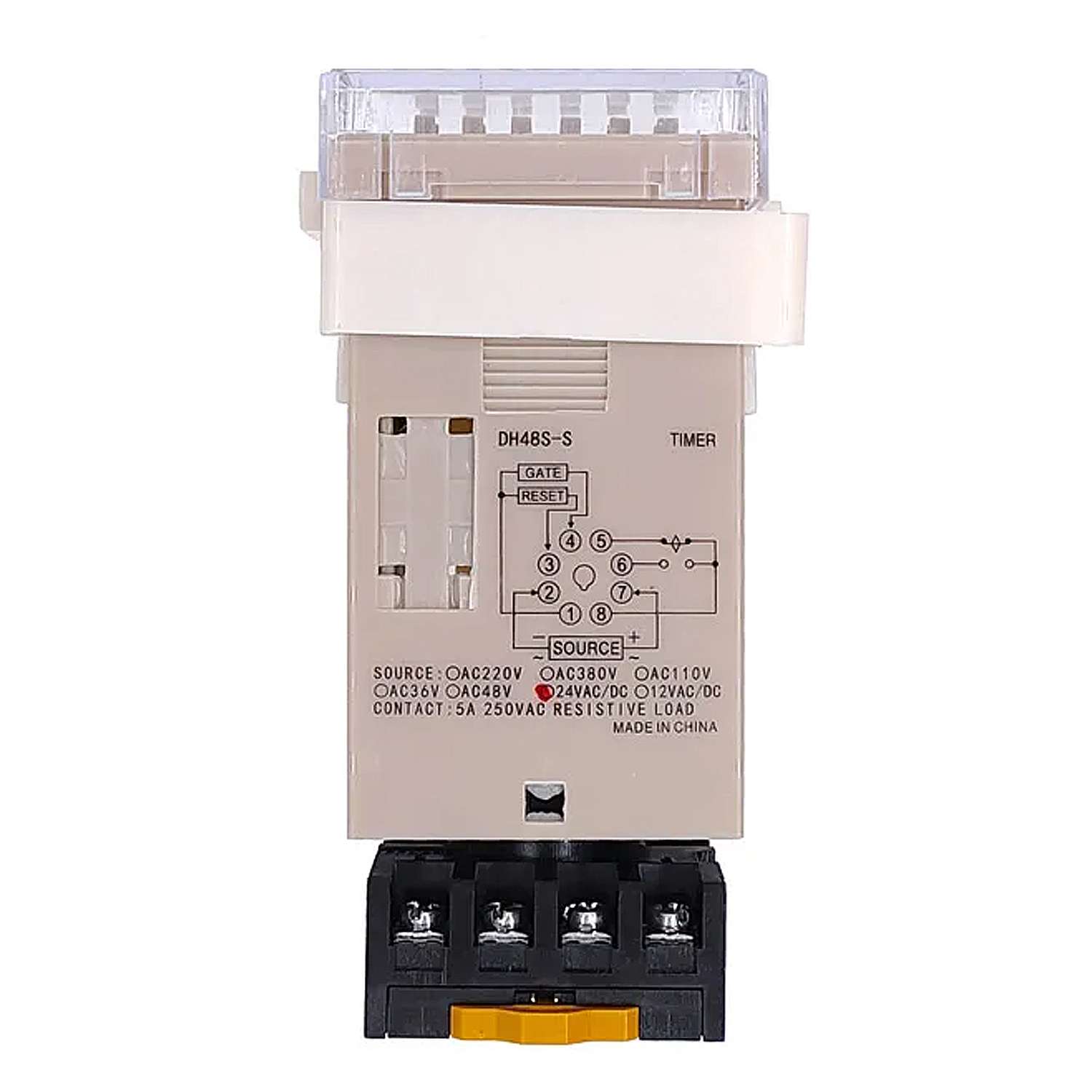

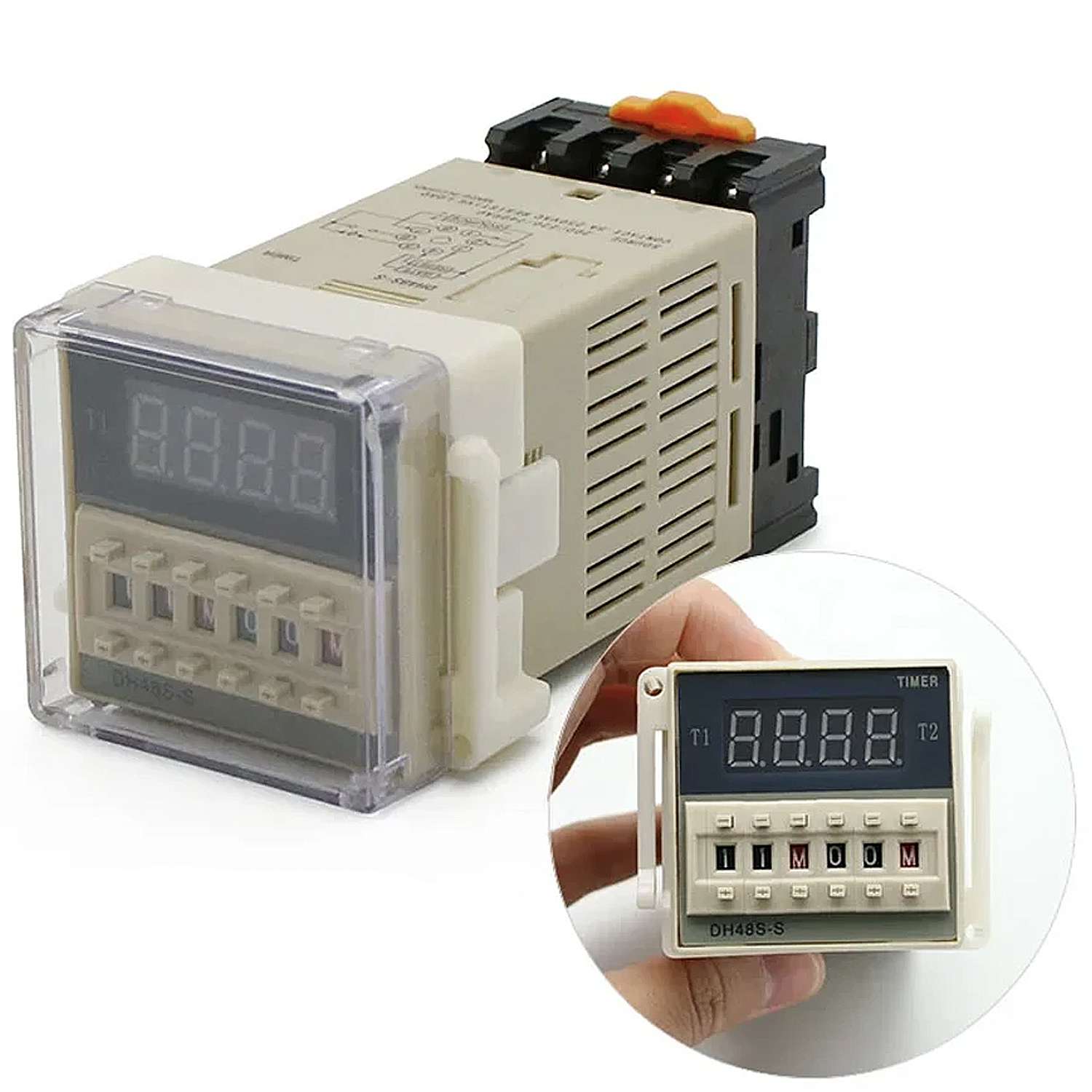

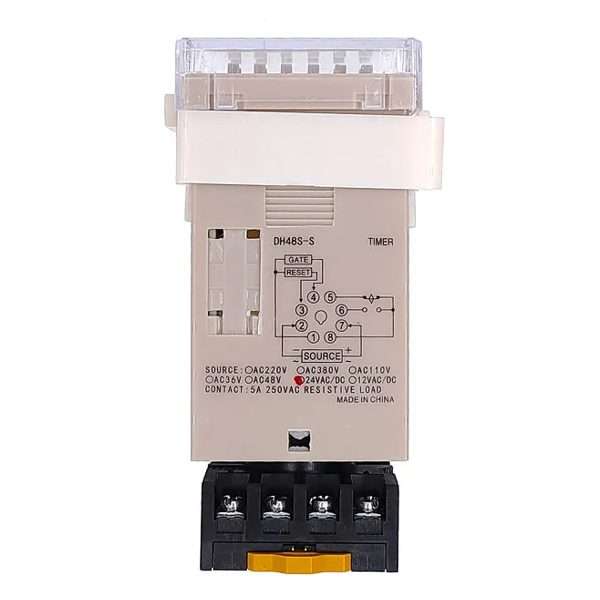

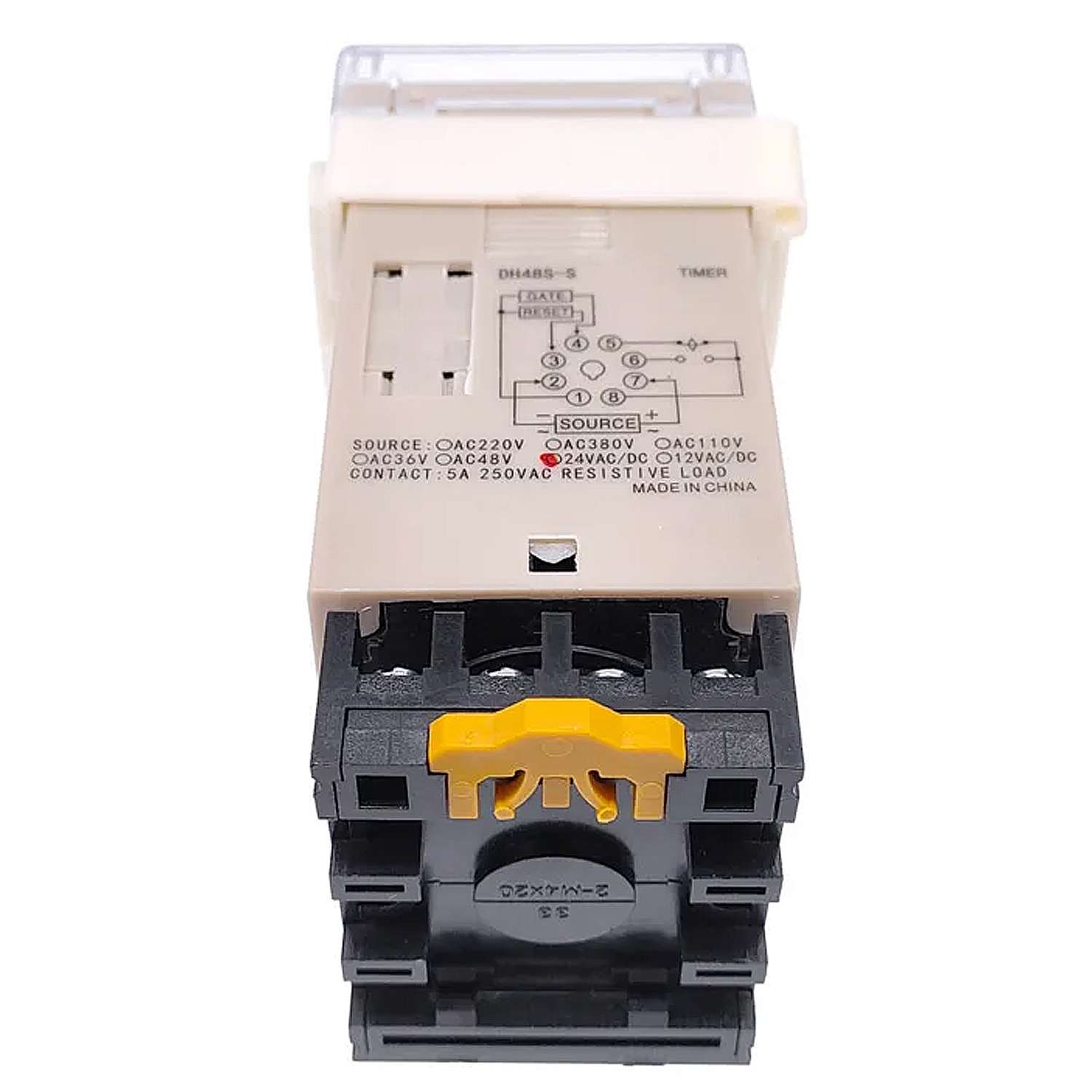

DH48S-S Digital Time Delay Relay AC 220V Repeat Cycle SPDT with Socket DH48S Series Mist System Delay Timer with Base in Pakistan
Availability:
99 in stock
- Dealy Range:0.01s-99.99s ; 1s-99m99s ; 1m-99h99m
- Repeat accuracy: <0.3%±0.5sec
- Mechanical life: >10000000
- Electrical Life: >100000
- Contact Type: DPDT, 2NO 2NC
- Operating ambient temperature:-10℃-50℃
- Power consumption: ≤3W
- Altitude:<2000m
- size:48mm*48mm
₨ 2,200 ₨ 3,500
99 in stock
Specification :
Model number | DH48S |
| Supply voltage | 36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc |
| Tolerance | -15% … 10% at AC and -10% … 10% at DC of rated supply voltage |
| Power consumption | 2W max |

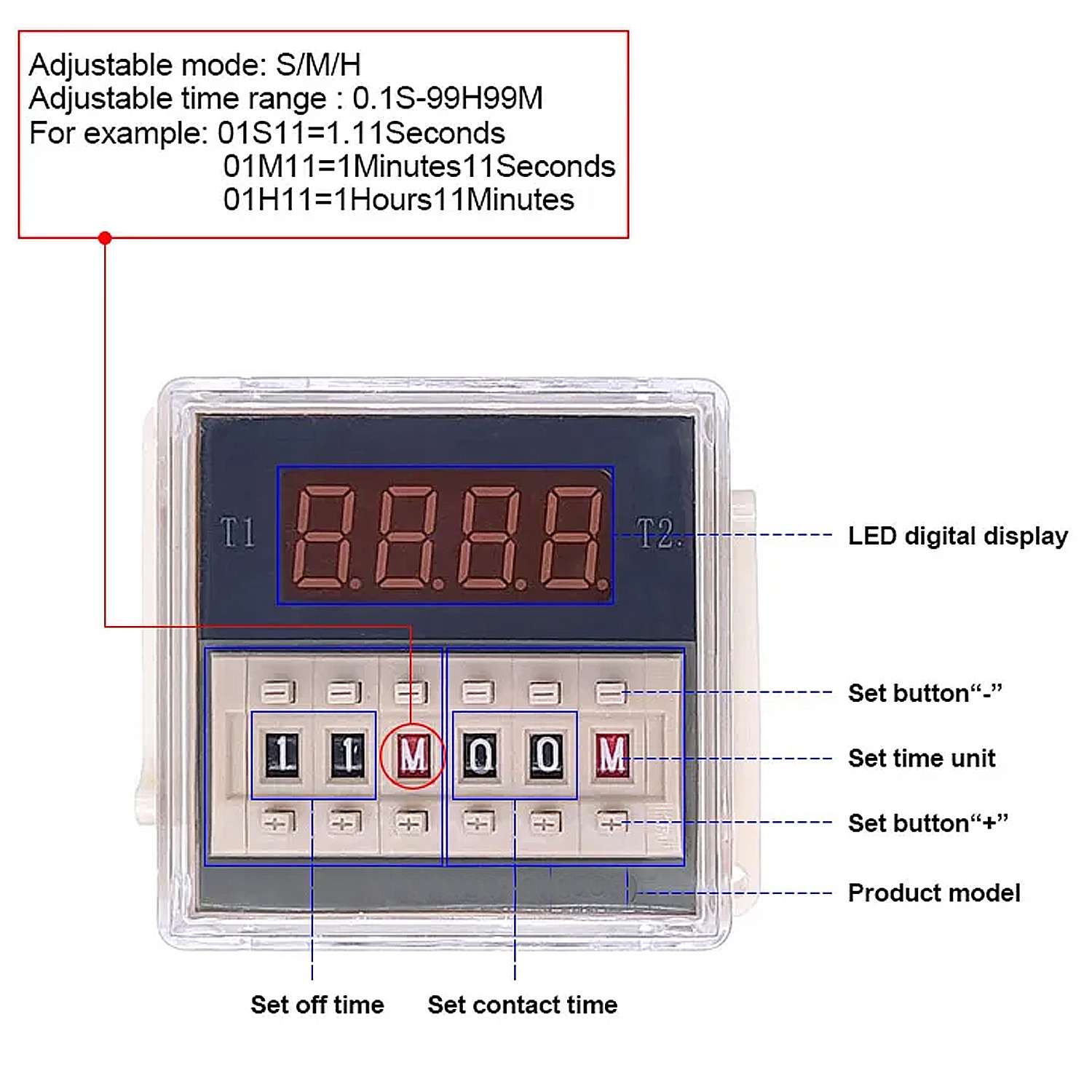

| Setting method | Dial switch |
| Indication method | 8-segment 4-digital display |
| External dimensions | 48x48x97.4 mm |
| Perforate dimensions | 45 10×45 10 mm |
| Contact rating | 3A@250Vac, 5A@28Vdc |
| Repeat accuracy | ±0.3%, ±0.05 sec |
| Setting error | ±0.5%, ±0.05 sec |
| Termination | 8 pins |
| Mounting | Panel, din rail |

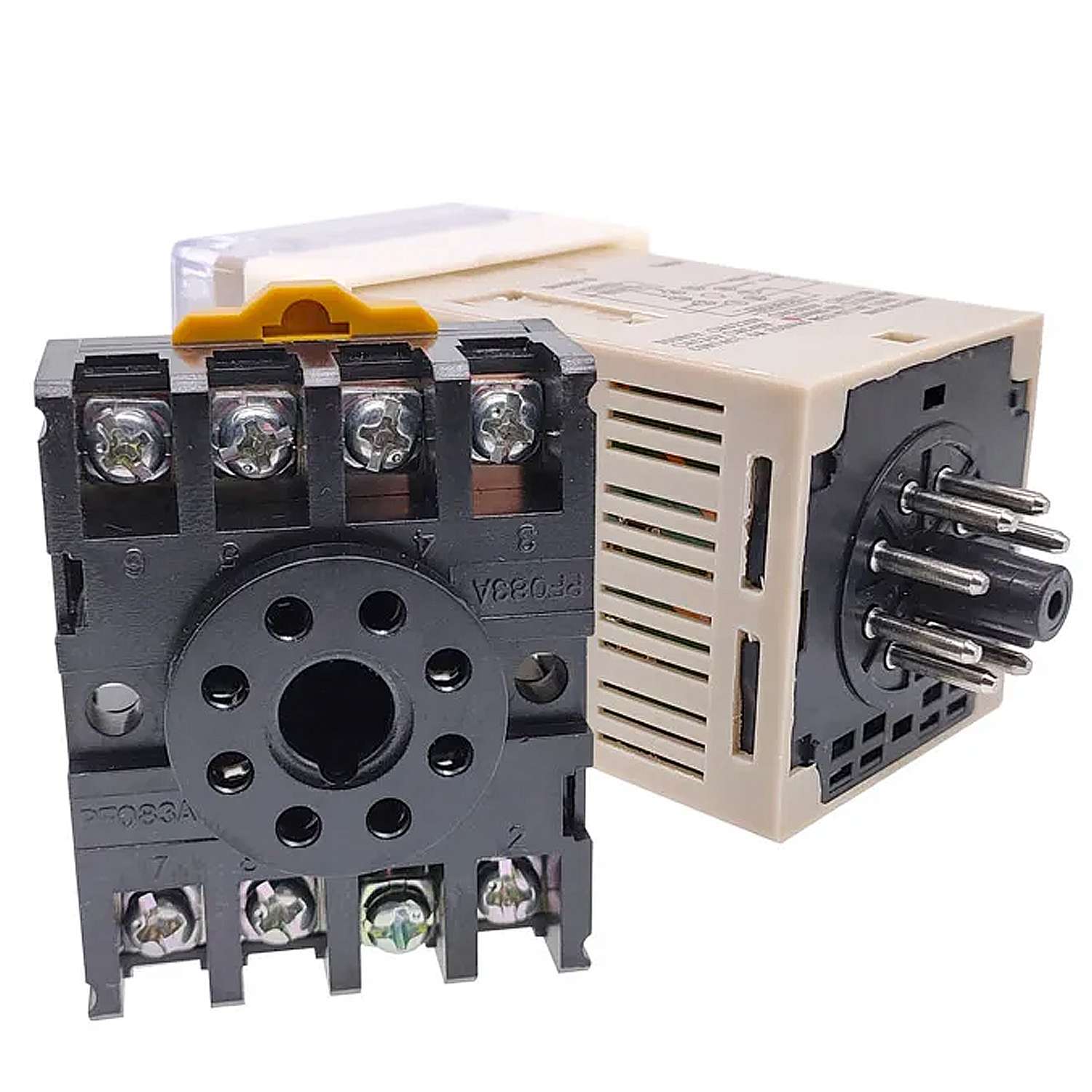

| Matched socket | PF083A, PF083A-E |
| Mechanical life | 1×106 |
| Electrical life | 1×105 |
| Operating temperature | 0 to 50 °C (32 to 122 °F) |
| Operating humidity | 95% RH max, non-condensing |
| Alias name | DH48S digital timer |
Package included:
1 x Relay
1 x Base
