Showing all 5 results
-
PROTECTION RELAY
TOMZN 40A 220V Over And Under Voltage Protective Device Protector Protection Relay Breaker in Pakistan
PROTECTION RELAYTOMZN 40A 220V Over And Under Voltage Protective Device Protector Protection Relay Breaker in Pakistan
3 LED LAMP Power Under voltage protection – Over voltage protection
- Rated AC voltage 230V±10% and frequency 50Hz/60Hz
- Passing Max Current: 40A
- Max. Loading power: 8.8KVA
- Over-voltage action cut-off value: >270VAC+/-5V
- Normal-voltage value: 175-270VAC
- Under-voltage action cut-off value: <170VAC+/-5V
- Over voltage and under voltage cut-off:< 1s
- Electricity transmitting delay after cut-off: <60s
- Self power consumption<2W
- Electric machinery life=100000 times
- Dimension: 35L*70W*77Hmm
- Installing: 35mm Din rail
SKU: 40A OVER UNDER BREAKER -
PROTECTION RELAY
TOMZN 60A 230V Adjustable Voltage & Ampere Over And Under Protector Relay Breaker with Over Current Protection in Pakistan
PROTECTION RELAYTOMZN 60A 230V Adjustable Voltage & Ampere Over And Under Protector Relay Breaker with Over Current Protection in Pakistan
- Under voltage protection 210V-145V (adjustable) (default: 170V)
- Over voltage proteciton 230V-300V (adjustable) (default: 270)
- Over current protection 1A-63A (adjustable) (default: 40A)
- Reconnect time (delay on time): 3s-300s (default: 30s)
- Voltage meter , Ammeter
- Rated voltage: 220V; Frequency: 50Hz/60HZ
- Over current protection: 1A-63A (adjustable) (default: 40A)
- Under-voltage action switch-off value: 210V-145V (adjustable) (default: 170V)
- Over-voltage action switch-off value: 230V-300V (adjustable) (default: 270)
- Reconnect time (delay on time): 3s-300s (default: 30s)
- Error in real-time current, voltage : ≤5%
SKU: 60A ADJUST OVER UNDER BREAKER -
-
-
PROTECTION RELAY

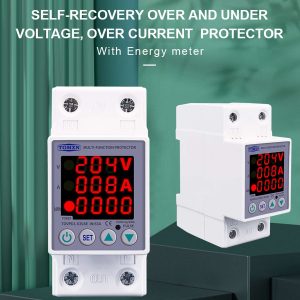

TOMZN 63A 230V 3IN1 Adjustable KWh Voltage & Ampere Over And Under Protector Relay Breaker with Over Current Protection in Pakistan
PROTECTION RELAYTOMZN 63A 230V 3IN1 Adjustable KWh Voltage & Ampere Over And Under Protector Relay Breaker with Over Current Protection in Pakistan
- Under voltage protection 210V-145V (adjustable) (default: 170V)
- Over voltage protection 230V-300V (adjustable) (default: 270)
- Over current protection 1A-63A (adjustable) (default: 63A)
- Reconnect time (delay on time): 1s-300s (default: 40s)
- Voltage meter , Ammeter , Energy meter
- Rated voltage: 220V; Frequency: 50Hz/60HZ
- Reconnect time (delay on time): 3s-300s (default: 30s)
- Error in real-time current, voltage : ≤5%
SKU: 63A kWH ADJUST OVER UNDER BREAKER
