I’ve had this conversation more times than I can count. Load shedding starts, the inverter trips, the house becomes dark and the first thing someone does is blame the inverter. They call a technician. The technician replaces something. The tripping continues.
The inverter was never the problem.
What people almost never realise is that a tripping inverter is not a malfunction. It’s the system working correctly shutting itself down because a real condition in your setup pushed it past a safe limit. The inverter didn’t fail you. It protected itself from something your installation wasn’t ready to handle.
Understanding that shift completely changes how you approach the problem. Instead of asking “what’s wrong with my inverter,” you start asking “what condition did my system hit at that exact moment” and that question has a specific, findable answer. Usually a cheap one.
Here’s the part that makes this particularly frustrating in Pakistan: the switchover from WAPDA to inverter power is one of the most electrically violent moments a home backup system ever experiences. It happens without warning. It happens under full load. And in a country where it repeats 6, 8, even 10 times on a bad day every single time, the inverter faces that same cold start under full demand. That’s not what the system was engineered for, anywhere in the world. And yet Pakistani homes run under those exact conditions, daily, for years.
What follows is the honest explanation of why inverters trip at that specific moment not generic advice, but the actual mechanisms, drawn from real installation failures I’ve seen across Pakistani homes.
What’s Actually Happening in That First Second
Before getting into causes, this context matters because without it, the fixes feel arbitrary.

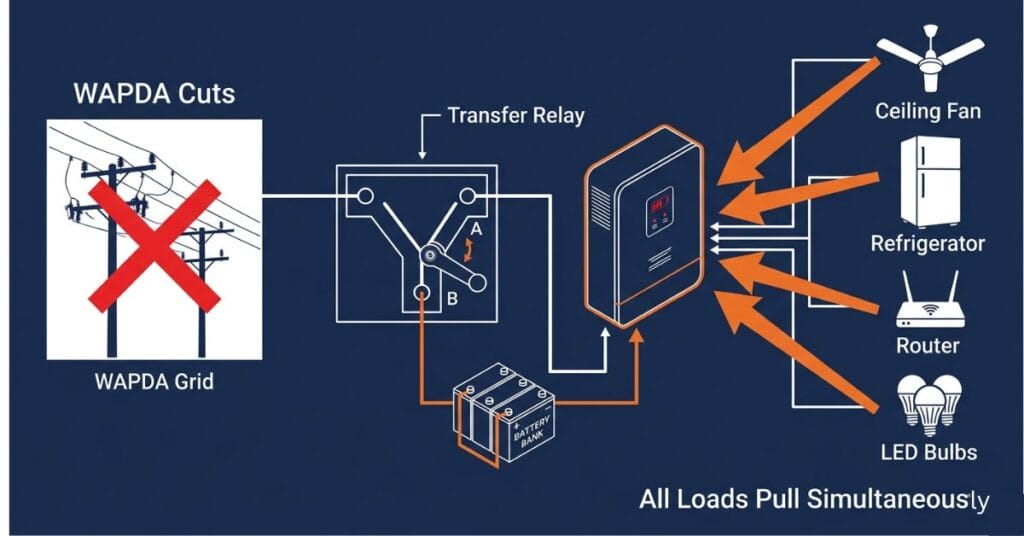

When WAPDA is on and your inverter sits in standby, the output stage of the inverter is essentially idle. It draws minimal power, keeps the battery on a maintenance charge, and waits. The entire system is in a low-stress state.
The moment WAPDA cuts, the transfer relay inside the inverter flips usually within 10 to 20 milliseconds and the output stage has to go from idle to delivering full power instantly. Not ramping up. Not warming up. Full output, right now, to whatever load is on the circuit.
Here’s what that load looks like at that exact moment: every appliance that was running on WAPDA is still running. Fans are mid-spin. The refrigerator compressor may be mid-cycle. The router, TV, chargers all of them. None of them pause, reduce demand or cooperate. They all pull simultaneously from a system that was idle a fraction of a second ago.
Now add the specific electrical behaviour of motors at that moment. A motor that’s already spinning doesn’t need a full startup surge but it does need more current than steady running to maintain speed under the transition, especially if the supply voltage isn’t perfectly clean during switchover. A motor that was off and happens to start up in the same window of the switchover needs its full startup surge on top of everything else.
The first second of load shedding is the single hardest moment your inverter faces all day. Everything that follows the two hours of running fans and lights is trivial by comparison. But that first second is where most installations are completely unprepared.
What’s Likely Causing Your Trip
- The combined startup demand of all running appliances exceeds the inverter’s surge rating in the first second
- The battery’s internal resistance is high enough that it can’t deliver the burst current cleanly voltage collapses briefly and the inverter’s protection reads it as a dead battery
- The cable between battery and inverter drops too much voltage under surge current the inverter input sees a safe-looking battery as dangerously low
- One or more motor loads hit their startup peak at exactly the switchover moment
- The inverter’s thermal protection trips because it was already heat-soaked from a full day of charging in a poorly ventilated space
- The inverter’s continuous rating was correctly sized for your load but its surge rating was never checked against your actual startup demand
Every cause produces identical behaviour: the inverter trips immediately at switchover. The cause and the fix are completely different. The trip is just the signal.
Cause 1: The Surge Rating Nobody Checks
Every inverter has two wattage numbers continuous rating and surge rating. Most people only know the continuous one. The surge rating is the one that determines whether your system survives the first second of load shedding.
When an inverter is sold as “1000W,” that number refers to continuous output what it can sustain indefinitely under steady load. Almost every inverter also has a surge or peak rating, typically 1.5x to 3x the continuous rating, which is what it can tolerate for a brief window usually 5 to 10 seconds before its protection triggers.
Your load’s startup surge has to fit inside that surge rating, not the continuous rating.
A home running three ceiling fans (75W each), an LED television (80W), a router (15W) and a refrigerator (150W running) looks like a comfortable 395W steady load against a 1000W inverter. That’s 40% utilisation. Looks fine.
But at load shedding switchover:
- Three ceiling fans: approximately 180W to 250W each at startup = up to 750W combined
- Refrigerator compressor: 600W to 800W startup surge
- Television and router: minimal surge, roughly their running wattage
That same 395W steady load hits the inverter at 1,500W or more in the first two seconds. A 1,000W inverter with a 2x surge rating has a 2,000W peak tolerance. You’re at 75% of surge capacity just from those four appliance types. Add a desert cooler, a second fridge or a water pump to that circuit and you’ve already crossed the surge limit on what looks like a reasonably sized system.
If you’re unsure which appliances create the highest surge risk on an inverter circuit, this breakdown covers each one with the specific wattage math behind it.
The reason this catches people off guard is that the same inverter handles the load perfectly once everything settles into running. Five minutes after switchover, that 395W load runs comfortably on a 1000W inverter. The problem existed only in those first two seconds. Nobody ever calculated for those two seconds.
Checking your inverter’s surge rating is not optional if you have motor loads on the circuit. It’s the number that actually tells you whether your system is correctly sized for Pakistani load shedding conditions.
Cause 2: The Battery Reads Fine But Fails Under Pressure
A battery’s resting voltage tells you what it has in storage. It tells you nothing about whether it can deliver that energy fast enough when the inverter needs it all at once. Those are two completely different measurements and in Pakistan’s climate, they diverge much faster than the AH label suggests.
This is the cause that generates the most unnecessary battery replacements, because the sequence is so counterintuitive.
A homeowner notices the inverter trips at load shedding. They test the battery resting voltage reads 12.4V. That looks like a battery with some life left. But the inverter keeps tripping. They assume the inverter is faulty. It isn’t.
What’s actually happening: the battery’s internal resistance has risen with age, heat exposure and partial sulfation. Internal resistance isn’t visible on a voltage test at rest. It only shows up under load.
When the inverter demands surge current at switchover let’s say 80A for 2 seconds on a 1000W system the battery has to push that current through its own internal resistance before it reaches the inverter. On a fresh battery with 5 milliohms of internal resistance, 80A drops 0.4V internally. The battery delivers 12.4V to the inverter: fine.
On an aging battery with 25 milliohms of internal resistance, the same 80A drops 2V internally. The battery delivers 10.4V to the inverter. Most inverters cut out below 10.5V to 11V. The inverter trips not because the battery ran out of energy, but because it couldn’t push that energy fast enough through its own degraded internal pathways.
The battery isn’t dead. It’s just slow. And a slow battery in a Pakistani home in July where battery operating temperatures routinely reach 40°C to 45°C and internal resistance rises with heat behaves measurably worse than the same battery in March.
Testing internal resistance requires a proper battery load tester, which most people don’t own. The practical workaround is to measure voltage under load: check battery voltage at rest, then again within the first 3 seconds of a switchover under full home load. This is the same test that reveals whether a new battery is genuinely performing at rated capacity a problem more common in Pakistani markets than most buyers realise.
A voltage drop of more than 1V during that burst is a clear signal of high internal resistance. The battery needs replacement or desulfation treatment, regardless of what the resting voltage says.
Cause 3: The Rs. 800 Cable That Destroys a Rs. 20,000 System

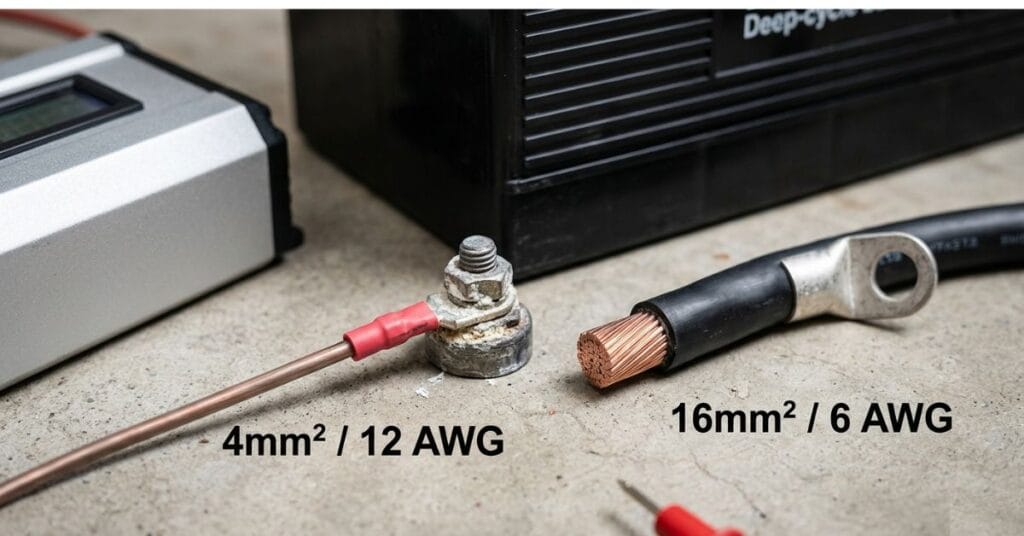

The cable between your battery and inverter is the single most load-stressed component in your entire backup system at the moment of switchover and it’s also the component that gets zero attention during installation and zero thought during troubleshooting.
I want to be direct about this because I’ve seen it cause expensive, repeated misdiagnoses: the battery-to-inverter cable is where a large fraction of Pakistani inverter tripping problems actually live. Not the inverter. Not the battery. The cable connecting them.
Here’s the physics. Resistance in a conductor causes voltage drop proportional to current. At steady load say, 30A on a 1000W system running at 40% capacity a slightly undersized cable might drop 0.2V. The inverter input sees 12.2V instead of 12.4V. It runs fine. Nobody notices.
At switchover surge 80A, 90A, 100A for two seconds the same cable drops 0.5V to 0.8V per milliohm of resistance. An undersized 4mm² cable instead of the correct 10mm² or 16mm² cable might have 3 to 5 milliohms of resistance over a 1.5-metre run. At 90A of surge current, that’s a 0.27V to 0.45V drop per milliohm meaning total drops of 0.8V to 2.25V in the surge window.
Battery at 12.4V, cable drops 1.8V under surge, inverter input sees 10.6V. Low voltage protection trips. The inverter shuts down.
The battery is fine, The inverter is fine. A cable that cost Rs. 300 per metre to buy and 20 minutes to install has been silently causing the problem the whole time.
Now add corrosion. A battery terminal with even light oxidation the white or blue powdery buildup common in Pakistani homes, especially in coastal or humid areas adds resistance at the connection point itself. Under surge current, that corroded joint can drop as much voltage as a metre of undersized cable. And unlike the cable, it’s invisible until you look directly at the terminal with the connection removed.
The correct cable size for a 12V inverter by wattage:
| Inverter Rating | Maximum Current | Minimum Cable Size | Recommended Cable Size |
|---|---|---|---|
| 600W | ~55A | 6mm² | 10mm² |
| 1000W | ~90A | 10mm² | 16mm² |
| 1500W | ~135A | 16mm² | 25mm² |
| 2000W | ~180A | 25mm² | 35mm² |
If your cable is smaller than the minimum column for your inverter, you have already found the most likely cause of your switchover trip.
Cause 4: Heat Problem That Peaks at the Worst Possible Time
There’s a specific failure pattern that appears in Pakistani homes between May and August, almost nowhere else, and almost never in inverter guides written for other markets.

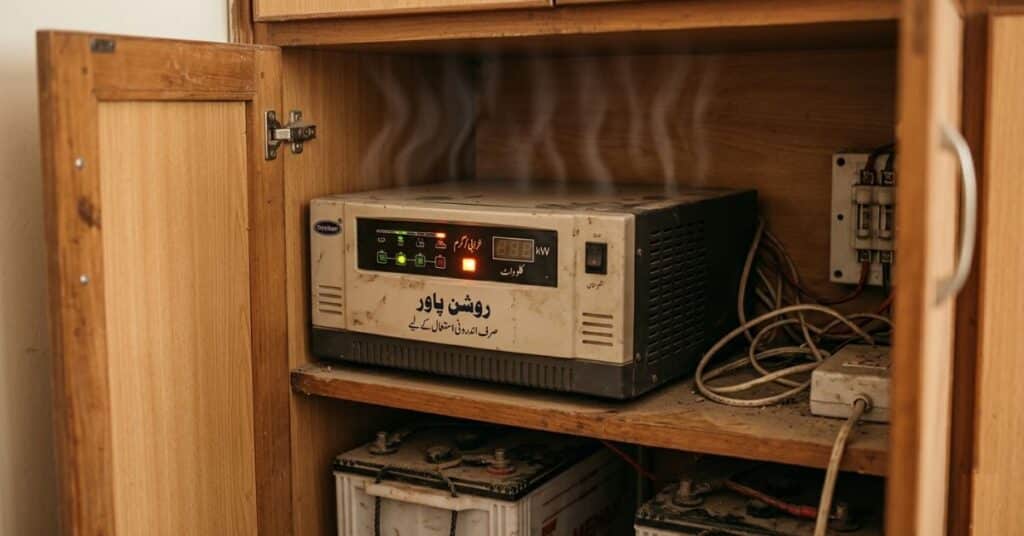

By late afternoon in a Pakistani summer, an inverter that has been in a closed room, a narrow cabinet or a space with limited airflow has been charging a battery for 6 to 10 hours. Charging generates heat. The inverter’s internal components transformer, output transistors, control board have been running warm all day. By 6pm, the internal temperature of the inverter may be 50°C or higher even though it’s been doing nothing strenuous.
Then load shedding starts. The inverter switches from low-power charging to full output delivery in a fraction of a second. The heat load inside the inverter spikes immediately. The thermal protection circuit, which was already reading an elevated temperature, trips the inverter within seconds.
The owner resets it. It runs for a few minutes, then trips again as temperature climbs back up. Reset, run, trip. Repeat through the evening.
In winter, the same inverter in the same location runs without issue. In March, it’s fine. By June, it trips daily. The owner assumes the inverter developed a fault. Often they replace it. The new inverter, in the same location, develops the same pattern the following summer.
The cause was never the inverter. It was where the inverter was placed.
A correctly ventilated inverter 15cm clearance on all sides, not in a sealed cabinet, not pressed against a wall that blocks its exhaust vents runs 15°C to 20°C cooler than the same unit in a typical Pakistani installation. In Pakistani summer conditions, that temperature difference is the margin between reliable operation and daily thermal tripping.
This is one fix that costs nothing. Move the inverter or improve its ventilation, and the summer tripping pattern disappears without replacing a single component.
The Duty Cycle Reality Nobody in Pakistani Markets Talks About
Most inverter specifications, installation guides and warranty terms were written for markets where backup power is occasional a few times a month during storms, maybe a few dozen times a year.
A Pakistani home inverter during summer load shedding switches from standby to full output and back again 6 to 10 times per day. That’s 180 to 300 switchover events per month. 1,000 to 3,000 per load shedding season.
Each switchover event puts mechanical and electrical stress on the transfer relay, thermal stress on the output transistors, and electrochemical stress on the battery. Individual events are within the system’s design tolerance. The cumulative effect of running at Pakistani duty cycles which no warranty document accounts for and no installer in Pakistan mentions accelerates component wear by a factor that no published specification quantifies honestly.
This is why Pakistani homes go through inverter batteries in 18 months when the label says 3 to 4 years. It’s why inverters that should last a decade start showing faults in year three. The equipment isn’t defective. It’s operating under conditions that no manufacturer designed for, at a cycle rate no specification accounts for.
The practical implication is one that Pakistani buyers resist because it feels like overspending: correctly sizing a backup system for Pakistani conditions means loading the inverter to 50% to 60% of its rated capacity not 80% to 90%. That extra headroom is not waste. It’s what gives the system the thermal and electrical margin to survive 2,000 switchover events per year instead of 200.
An installer who sizes your inverter exactly to your load is not doing you a favour. He’s giving you a system that performs correctly in Germany. In Lahore in July, you needed more room.
Trip Causes and How to Confirm Each One
| Cause | When Exactly It Trips | Key Symptom Beside the Trip | Cheapest First Check |
|---|---|---|---|
| Startup surge overload | First 1–2 seconds | Runs fine 5 min after reset | Calculate total startup surge vs inverter surge rating |
| Battery high internal resistance | First 1–3 seconds | Voltage drops sharply under load | Measure voltage at rest vs under load |
| Undersized or corroded cable | First 1–2 seconds | Terminals warm to touch after reset | Check cable gauge, inspect terminals for corrosion |
| Motor load peak at switchover | Immediately | Water pump or AC on same circuit | Disconnect pump, test switchover without it |
| Thermal protection | Within seconds, especially evenings | Trips more in summer, not winter | Check inverter placement and ventilation clearances |
| Inverter undersized for surge | Consistently every switchover | Never runs more than a few seconds | Check surge rating vs calculated startup load |
What Actually Matters More Than Fixing the Immediate Trip
Getting the inverter to stop tripping is the short-term goal. But the problem worth thinking about more seriously is what the tripping is costing the rest of your system every time it happens.
Every time the inverter trips under surge current, the output transistors absorb a current spike in the milliseconds before the protection circuit responds. The protection circuit is fast but not instantaneous. Those repeated spikes, hundreds of times over a load shedding season, contribute to progressive transistor degradation that doesn’t cause immediate failure but shortens the inverter’s useful life measurably.
Every time the battery experiences a voltage collapse severe enough to trip the inverter, it goes through a partial deep discharge event. If the inverter then shuts down without a controlled recovery charge, the battery sits partially discharged until mains power returns. Repeated partial discharges without proper recovery accelerate sulfation in lead-acid batteries faster than almost anything else including the normal aging that people blame.
The inverter trip is not just an inconvenience. It’s a symptom of a condition that’s actively wearing out two of the most expensive components in your backup system, simultaneously, every time it happens.
Fixing the root cause whichever of the causes above applies to your specific situation doesn’t just stop the tripping. It stops the slow, invisible degradation that was shortening the lifespan of everything connected to it.
Common Mistakes
Resetting the inverter without investigating. Every unexplained trip should trigger a question: what condition caused that? Resetting without asking that question means the condition happens again, and again, and the components wear a little more each time.
Checking the battery before checking the cable. The cable is the cheapest possible fix and one of the most common causes. It takes five minutes to inspect and costs almost nothing to replace if needed. Buying a new battery before verifying the cable is like replacing a car engine before checking if there’s fuel.
Wiring decisions made at installation time, cable gauge, terminal quality, circuit layout have a larger impact on long-term system reliability than most Pakistani installers discuss upfront.
Assuming a new inverter solves a placement problem. I’ve seen this play out more than once a family replaces a tripping inverter, puts the new one in the same cabinet, and has the same thermal tripping pattern by June. The problem was never the inverter. The enclosure was the problem, and the new inverter inherited it immediately.
Keeping the water pump on the inverter circuit. This is the single load change that fixes more Pakistani switchover trips than any hardware replacement. The water pump’s startup surge combined with a full home load at switchover is a reliable way to exceed any reasonably sized home inverter’s surge rating. The pump belongs on a separate circuit or on a manual switch.
Never doing a pre-summer load test. If you wait for the first June load shedding to discover your system trips, you’re already in the worst possible conditions to diagnose and fix it. Testing in March manually switching to inverter under full load and watching for trips costs 10 minutes and gives you months of calm weather to address whatever the test reveals.
When Ignoring This Becomes Genuinely Costly
The tripping keeps degrading the battery. Every switchover trip that collapses battery voltage puts the battery through a stress event it wasn’t designed to repeat hundreds of times. A battery that correctly lasts 3 years under normal cycling can fail in 14 months under repeated surge-trip stress. The second replacement battery follows the same timeline if the root cause stays unfixed.
Overload trips progressively wear the inverter’s output stage. Each overload event forces the output transistors to absorb the surge spike before the protection circuit catches it. Over a thousand such events realistic in a single Pakistani load shedding season this progressive wear reduces efficiency, increases internal heat, and raises the probability of a sudden hard failure that damages the inverter beyond repair rather than just tripping it.
A thermally degraded inverter fails without warning at the worst moment. A system that trips daily from heat eventually reaches a point where the thermal damage to internal components causes failure that a reset doesn’t fix. That failure happens in summer, during load shedding, when backup power matters most. Not in October when conditions are manageable.
What to Actually Do
Step 1 — Calculate your real startup load before anything else. List every motor appliance on the circuit. For each one, multiply its running wattage by 3 to estimate startup surge. Add the running wattage of non-motor loads (lights, chargers, router). The total of all startup surges plus running non-motor loads is your worst-case switchover demand. Compare that to your inverter’s surge rating not its continuous rating.
Step 2 — Inspect the battery cable immediately. Check gauge against the table above. Tighten both terminals with a spanner not by hand. Remove each terminal, inspect the contact surface for corrosion, clean with fine sandpaper or a wire brush if needed, reconnect properly. This step eliminates one of the top three causes and costs nothing.
Step 3 — Measure battery voltage under load, not just at rest. Note resting voltage. Then during a manual switchover under full load, measure again within the first 3 seconds. A drop exceeding 1V indicates internal resistance high enough to cause trip events under surge demand. A drop exceeding 1.5V means the battery needs replacement regardless of its resting voltage reading.
Step 4 — Remove the water pump from the inverter circuit. If your circuit layout allows it, wire the pump to a manual switch outside the inverter circuit. During load shedding, that switch stays off. The startup surge eliminated by this one change often resolves tripping that looked like a much more complex problem.
Step 5 — Measure actual inverter temperature after an evening of load shedding. Touch the inverter casing 10 minutes into backup operation on a hot evening. It should be warm not hot enough to be uncomfortable to hold your hand against for several seconds. If it’s genuinely hot, the placement is the problem. Check clearances on all sides. Move it out of any enclosure.
Step 6 — Test the full system in March before summer starts. Manually switch to inverter power under full home load. Run for 15 minutes. Watch for trips, unusual heat, or unexplained shutdowns. Any issue found now has months of mild weather to be diagnosed and addressed before you need the system to work reliably at 11pm in the middle of a June heat wave.
FAQ
The trip happens in the first second of switchover when combined startup surges from all appliances peak simultaneously. Once everything settles into steady running, the load drops back to the continuous level the inverter handles easily. The problem is the surge in that first second, not the ongoing operation. Check the cable first, then calculate total startup surge against your inverter’s surge rating.
A new inverter trips for exactly the same reasons as an old one. Startup surge overload, undersized cable, battery burst failure, or poor ventilation placement have nothing to do with the inverter’s age. The most common cause with a recently installed system is an undersized battery cable that the installer used because it was available, not because it was correct. Check the cable gauge first.
Add the running wattage of every appliance on the circuit. For each motor appliance (fans, fridge, pump), multiply the running wattage by 3 to estimate startup surge. The highest single startup surge plus the running wattage of everything else running simultaneously is your peak switchover demand. That number needs to be within your inverter’s stated surge rating not its continuous rating.
Yes and in areas where load shedding follows a rough schedule, this is a genuinely useful habit. Turning off the water pump and refrigerator a few minutes before a known load shedding window removes the two highest startup surge loads from the switchover moment. It costs nothing, takes 30 seconds, and meaningfully extends inverter and battery life over time.
The Real Takeaway
Here’s something worth sitting with: the inverter trip that frustrates you every evening is your system accurately reporting a real condition. It’s not broken. It’s responding correctly to something that exceeds its safe operating limits.
The expensive version of this problem is what happens when you ignore that report when you reset the inverter daily for six months without asking what it’s reacting to. The components wear. The battery degrades faster. Eventually something fails hard enough that a reset doesn’t fix it, and you’re replacing the entire system rather than a cable or redistributing a circuit.
The cheap version of this problem is what happens when you spend 20 minutes this weekend checking the cable gauge, inspecting the terminals, calculating the startup load, and looking at where the inverter is sitting. In most cases, one of those checks reveals the answer. The fix is almost always under Rs. 2,000 and under an hour of work.
Pakistani homes run backup power systems under conditions no manufacturer specification fully accounts for. That gap between what the equipment was designed for and what it actually experiences in a Lahore summer is your responsibility to close, because no installer or warranty card will close it for you. The good news is that closing it is neither difficult nor expensive. It just requires knowing what to look for.
Now you know.
