My UPS Beeps Constantly But Battery Is New: What’s Actually Wrong

The battery is probably not the problem.

I know that’s not what you want to hear after spending money on a replacement. But if I’m being honest and that’s the whole point of this article, nine out of ten times someone walks into a shop or calls me asking why their UPS is still beeping after a new battery, the battery was never the actual issue.

Here’s what usually happened: The UPS beeped. Someone concluded it was the battery and then replaced it. The UPS kept beeping. Now they’re on forums, asking neighbours, watching YouTube videos still confused, still beeping.

The frustrating part isn’t the problem itself. It’s that the entire diagnostic process skipped about five possible causes and went straight to the most expensive one.

What I want to do in this article is walk you through what actually causes a UPS to beep constantly including causes that have nothing whatsoever to do with the battery and give you a real way to find the actual answer before you spend another rupee.

The Quick Answer (Before We Go Deeper)

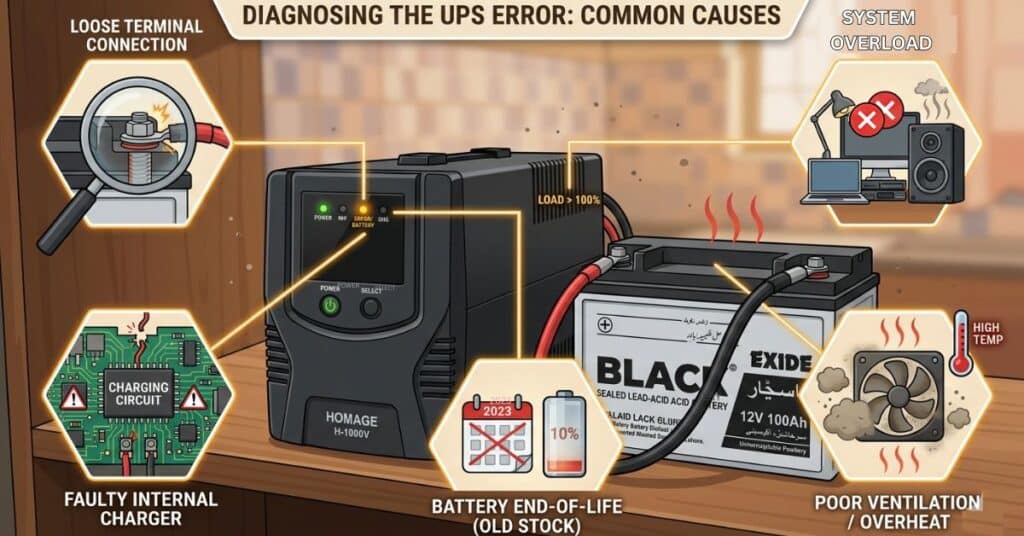

If your UPS is beeping constantly with a new battery, here are the real candidates:

• The UPS hasn’t recalibrated, it’s still running the old battery’s behavioral profile
• The new battery wasn’t fully charged before you started using it
• A terminal connection or battery cable has a loose or high-resistance joint
• The new battery is technically undersized for your UPS’s load
• The battery isn’t actually new it’s old warehouse stock or a refurbished unit
• The load on your UPS is too high, which no battery can fix
• There’s a fault inside the UPS itself, charger circuit, capacitor or protection board

Every single one of these produces the exact same beeping sound. That’s the core problem. The UPS doesn’t beep differently based on cause, it just beeps. So diagnosing by sound alone is like a doctor diagnosing every fever as the same illness. The symptom is identical. The cause and treatment are completely different.

What “New Battery” Actually Means in Pakistan

Battery’s manufacturing date and its purchase date are two very different things and the gap can already cost you capacity before you’ve used the battery once.

This is the section I wish someone had written years ago, because I’ve had to explain it hundreds of times in person.

When you walk into a shop in Hall Road, Raja Bazaar, Hafeez Centre, or any local electrical market and ask for a new battery, you assume you’re getting something freshly made. That assumption is often wrong and nobody in the shop will volunteer that information.

Here’s the reality of how lead-acid batteries move through the Pakistani supply chain:

Distributors import or locally assemble batteries in large batches. The stock sits in their warehouses for weeks. Wholesalers buy it and sit on it longer. Retailers stock their shelves and wait for customers. By the time that battery reaches your hands, the manufacturer may have produced it 8, 10, even 14 months earlier in a warehouse, on a shelf, through a Pakistani summer.

Lead-acid batteries don’t simply wait patiently in storage. Without a maintenance charge every few months, they start self-discharging and sulfating a process where lead sulfate crystals build up on the battery plates and permanently cut capacity. A battery that spent a year uncharged in a hot warehouse has already lost real capacity before you ever plug it in. You paid for a new battery. You received a partially degraded one.

Then there’s the refurbished problem. Some sellers recondition old battery plates, clean up the casing, and put the unit back on the shelf with no honest disclosure of its history. These batteries often pass a basic voltage check 12.6V, looks healthy. But resting voltage tells you almost nothing about real capacity. Apply a proper load and the voltage collapses within seconds.

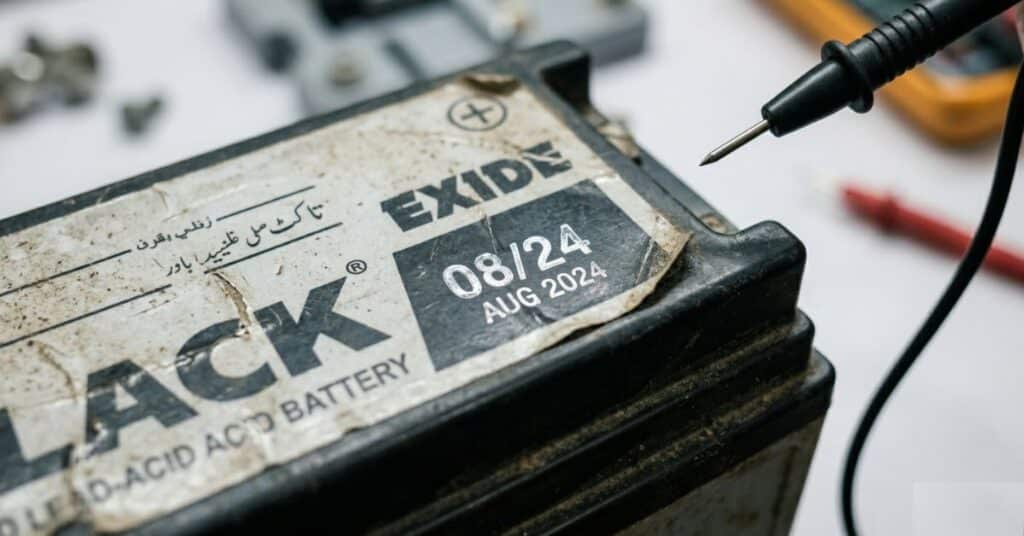

How to protect yourself: Every lead-acid battery carries a manufacturing date stamped or printed on its casing usually a two-digit month and year code. Find it before you hand over any money. If the manufacturer made that battery more than 5 to 6 months ago, storage has already degraded it to some degree. Either negotiate a lower price or walk away and find fresher stock. This check takes 30 seconds and has saved people I know from paying new prices for essentially used batteries.

If you want to go one step further, bring a multimeter and test the resting voltage before purchase. A genuinely new, fully charged 12V sealed lead-acid battery should read between 12.6V and 12.8V at rest. Anything below 12.4V on a battery the shop calls “new” is already a red flag worth taking seriously.

The Recalibration Issue That Almost Nobody Knows About

Your UPS may have “learned” your old battery’s bad behavior and it doesn’t automatically forget that when you install a new one.

This is possibly the least-discussed cause of post-replacement beeping, and it catches even experienced electricians off guard.
Many UPS units especially the budget and mid-range models that make up the majority of Pakistani homes don’t have sophisticated battery management systems. Over months of use, their internal logic adapts to how the battery behaves: how fast voltage drops under load, how quickly it recovers when load is removed, how long it takes to charge from a given depth of discharge.

When your old battery was degraded, the UPS had adapted to that pattern. Voltage dropped fast. The UPS learned to expect fast drops. It tuned its alarm thresholds accordingly.

Install a new battery and the UPS doesn’t automatically know it’s new. It’s still operating with the old learned profile. The new battery behaves completely differently voltage is stable, recovery is fast, charge time is longer. The UPS, comparing this to what it “remembers,” sometimes flags this as abnormal behavior and triggers alarms.

The fix is a deliberate recalibration: charge the new battery fully via the UPS, then run it down to near cutoff under normal home load, then charge it fully again. Do this cycle twice. This gives the UPS enough data to build a new behavioral profile for the new battery. Many models also have a hidden battery reset function in the settings menu not in the quick-start guide, but in the full manual. Search your model number specifically for this.

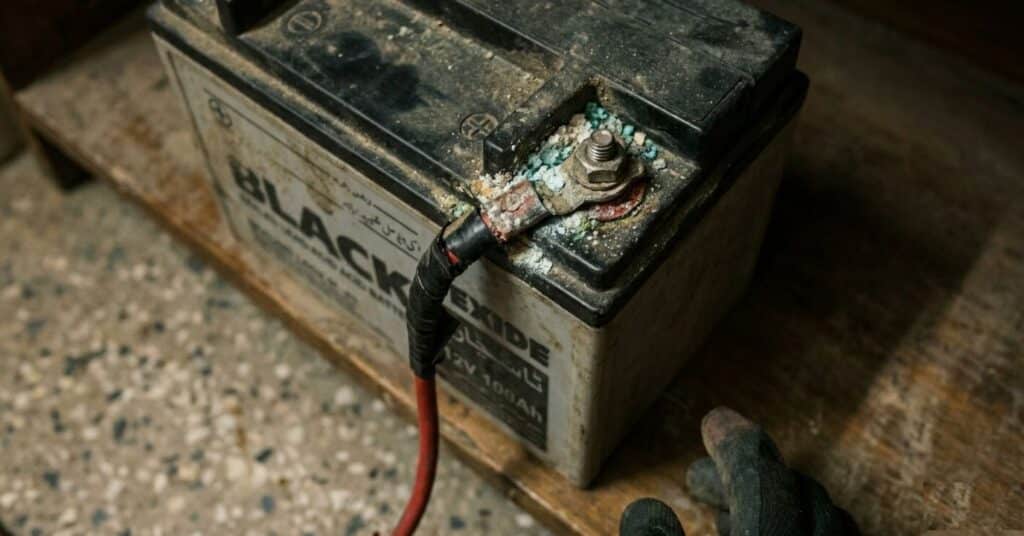

The Terminal Connection Issue That Gets Blamed on Batteries Constantly

Let me describe something I have seen happen more than I can comfortably count.

A family’s UPS starts beeping. An electrician comes, checks the battery, says it’s weak. New battery is purchased and installed. Beeping continues. Electrician says the new battery must be faulty. Second battery is purchased. Beeping continues. By this point, two batteries have been bought, neither helped, and everyone is confused and frustrated.

I looked at one of these situations once. The battery was fine both batteries had been fine.

The cable connecting the battery to the UPS was undersized a thin wire that the original installer had used because it was what he had available. Under light load, during normal WAPDA supply, this was invisible. The moment load shedding started and the UPS switched to battery, the current demand spiked. That thin cable had enough resistance to drop the voltage measurably between the battery terminals and the UPS input. The UPS read that voltage drop and interpreted it as a weak battery. It beeped.

This is how it works: your UPS monitors voltage at its own input terminals, not at the battery terminals. Those two points are connected by a cable. If that cable has resistance from being undersized, from corrosion at a connector, from a terminal that’s tight-looking but actually has poor surface contact the voltage at the UPS input will be lower than the actual battery voltage, especially under load. The UPS responds to what it reads, not what’s actually there.

After a battery swap, this problem gets worse not better. You disconnected and reconnected the terminals. Even if you tightened them by hand, hand-tight for a battery terminal is not enough. Battery terminals carry very high current during backup. A connection that seems solid can have just enough resistance to cause a voltage drop that triggers the alarm.

Always use a proper spanner after a battery installation. Always inspect the cable gauge it should match the original or be thicker. And always look at the terminal surfaces for white or blue powdery corrosion, which dramatically increases resistance even when the connection looks tight.

Overload; The Cause That Has Nothing to Do With the Battery at All

A new battery can actually reveal an overload problem that your old, degraded battery was accidentally hiding.

This one is genuinely counterintuitive, and it surprises people every time I explain it.

Here’s the scenario: Your UPS has been running fine for a couple of years. Slowly, over time, you added things to the circuit a second fan in another room, a router, a set-top box, a few USB chargers. Each addition seemed small. The total load crept up quietly.

Your old battery, being degraded, caused the UPS to be conservative about what it attempted to power. It would cut things short or reduce output rather than push hard. In a strange way, the weak battery was acting as a soft limiter on the load.

You install a new battery. Now the UPS has full capacity and tries to actually power everything on the circuit. It hits the overload threshold it was quietly skating under before. The alarm triggers.

This is not a battery problem. This is a load management problem. And it will not be fixed by any battery new, expensive, or otherwise.

The diagnostic is simple: disconnect all appliances from the UPS. If the beeping stops immediately, overload is the cause. Reconnect appliances one by one. When the beeping returns, the last appliance you added pushed the load over the limit. Either remove it from the inverter circuit permanently or upgrade to a higher-rated UPS.
Check to know What Appliances You Should Never Run on Inverter Power.

The UPS Charger Circuit Problem (This One Destroys Batteries Silently)

There’s a failure mode that doesn’t get enough attention because it’s harder to diagnose without equipment, but it matters enormously in practice.

Inside every UPS is a charging circuit that converts grid power to charge the battery. In quality UPS units, this circuit is regulated and accurate. In budget units which represent the majority of what’s sold in Pakistani markets under Rs. 15,000 to 20,000 this charging circuit is often poorly regulated.

What happens over time is this: the charging circuit begins delivering incorrect voltage. Sometimes too high (overcharging), sometimes too low (undercharging). Both are damaging. Overcharging causes excessive gassing and plate degradation in lead-acid batteries. Undercharging leads to chronic sulfation and capacity loss.

The cruel part is that when this is happening, everything looks normal. The UPS charges the battery. The battery runs backup. But the backup time keeps getting shorter every month. Eventually the battery appears to have failed. A new battery is installed. And the same faulty charger circuit begins destroying the new one at the same rate.

If you’ve gone through two or three batteries in the same UPS and they’ve all failed within 8 to 10 months, the charger circuit is the primary suspect. Test the charging voltage at the battery terminals using a multimeter while the UPS is connected to mains power. It should read between 13.5V and 14.4V for a standard 12V lead-acid battery during charging. Below 13.5V means undercharging. Above 14.8V means overcharging. Either reading means the UPS is damaging whatever battery you put in it.

Comparison Table: Diagnosing the Beep Before You Spend Anything

What Actually Matters More Than Finding the Cause

The diagnosis matters. But there’s something that matters more and I rarely see it discussed: the environment your UPS is sitting in.

I’ve inspected setups where the owner had done everything right correct battery, proper wiring, appropriate load and still went through batteries every 10 to 12 months. In every case, the UPS was installed in a closed cupboard, an interior room with no airflow, or directly against a wall with no clearance on the ventilation side.

Pakistani summers are not a footnote in UPS maintenance. They are the defining variable. An ambient temperature of 40°C inside a closed cabinet during July means your battery is operating at temperatures that can reach 50°C or higher internally during charging. Lead-acid batteries lose roughly 50% of their rated cycle life for every 10°C increase above 25°C operating temperature. The maths on that are brutal.

The battery you blame for failing in 10 months was actually a victim of environment, not quality.

Move your UPS to a ventilated space. If it’s in a cabinet, the cabinet needs airflow either open-back, a ventilation cutout or a small fan. This single change will extend battery life more than any brand upgrade you could make.

The second environmental factor is voltage quality from the grid itself. Chronic low voltage from WAPDA which is extremely common in residential areas, especially during summer peak demand hours forces the UPS charger to work harder and longer to bring the battery to full charge. In some areas, the grid voltage drops to 180V or even lower during evening hours. If your UPS’s charger is trying to charge from 180V instead of 220V, it’s compensating constantly, running hotter and delivering less consistent charge quality to the battery.

A stabilizer between WAPDA supply and your UPS input is not a luxury in these conditions. It’s protection.

Common Mistakes That Make This Worse

Buying the battery first, diagnosing second. The battery is the most expensive component involved. It should be the last thing you replace, not the first.

Hand-tightening terminal connections. I’ve seen this cause more repeat problems than almost anything else. Terminals carry very high current under load. Finger-tight is not connection-tight. Use a spanner. Every time, without exception.

Not checking the manufacturing date before buying. This takes 30 seconds. The date is stamped on every battery casing. There is no excuse for skipping this step, and shops that refuse to show you should be a red flag on their own.

Running the UPS on backup immediately after installation. A new battery needs a full initial charge before it performs at rated capacity. Connecting it and immediately using it during load shedding is putting a battery that arrived partially discharged straight into deep discharge. Let it charge for 10 to 14 hours on mains power before testing backup performance.

Treating all beeping as the same problem. Constant beeping, once-per-second beeping, beeping only during backup, beeping that starts after five minutes of backup, these are distinct patterns that most UPS manufacturers document in their manuals as beep codes. Reading that table first costs nothing. Ignoring it and guessing costs real money.

When This Becomes a Genuinely Expensive Problem

A beeping UPS is an inconvenience. A misread beeping UPS becomes a cycle of unnecessary spending that can run for years.

A beeping UPS is an inconvenience. A misread beeping UPS becomes a cycle of unnecessary spending that can run for years.

The situation escalates in three specific ways:

The faulty charger circuit keeps destroying every battery you buy. If the UPS’s internal charger circuit delivers incorrect voltage, it damages batteries on a predictable timeline regardless of brand, price or quality. You replace the battery. The circuit damages the new one at the same rate. You replace it again. Six months later, same result. Most people blame the battery brands, the market, even their luck never the charger circuit quietly killing everything connected to it.

Ignoring an overload cooks the UPS from the inside. When a UPS runs above its rated load for weeks or months, the internal heat doesn’t just trip an alarm, it physically degrades the capacitors, transformer windings, and output stage. By the time the unit stops working entirely, the damage is done. What started as a simple fix move one appliance off the inverter circuit has now turned into a full UPS replacement that costs five to ten times more.

Dismissing the beeping leads to the worst-case shutdown. The UPS doesn’t warn you before it gives up. It just stops mid load shedding, no notice. Whatever you had running at that moment loses power instantly. A desktop computer mid-task loses unsaved work. A router cuts out and drops every connected device. A phone on charge stops charging. None of that is dramatic on its own, but all of it was completely avoidable.

The beeping has a cause. That cause is almost always cheap and fast to fix once you identify it correctly. The only thing that makes it expensive is deciding the noise isn’t worth investigating.

What You Should Do Instead: A Clear Sequence

Step 1 — Record the beep pattern before touching anything. Is it continuous? Every few seconds? Only during backup? Only at certain load levels? Record it or describe it precisely, then look up your UPS model’s manual and find the beep code chart. This alone eliminates half the possible causes.

Step 2 — Check the new battery’s manufacturing date. Find the stamped code on the casing. More than 6 months old? You may already have a degraded battery regardless of what you paid for it.

Step 3 — Test resting voltage with a multimeter. Before or immediately after installation, check voltage at rest. Should be 12.6V to 12.8V for a standard 12V unit. Below 12.4V is a problem that needs addressing before anything else. Learn how to test battery voltage using multimeter.

Step 4 — Tighten all terminals with a spanner and inspect cables. Not by hand. With a proper tool. Check the cable gauge matches the original. Look for corrosion on terminal surfaces clean it off before reconnecting.

Step 5 — Run a full recalibration cycle. Charge fully, discharge under normal load to near cutoff, charge fully again. Twice. Only after this should you judge whether backup time is acceptable.

Step 6 — Disconnect all load and retest. If beeping stops with nothing connected, overload is the cause. Reconnect one appliance at a time until the beeping returns. That last appliance identified the threshold.

Step 7 — Measure charging voltage at the battery terminals. With the UPS connected to mains and charging, put your multimeter on the battery terminals. 13.5V to 14.4V is healthy. Outside that range, the UPS charger circuit has a problem that no battery will survive.

Frequently Asked Questions

The Real Takeaway

There’s a pattern I’ve noticed over years of looking at these problems. The people who waste the most money on repeat battery replacements are not the ones who know the least about electronics. They’re the ones who were certain they already knew the answer before they looked.

The UPS is beeping battery must be the problem, but after battery gets replaced. Still beeping. Must be a bad batch. Another battery gets replaced but still beeping.

The assumption drove the diagnosis. The diagnosis cost money. The actual problem, a loose cable, an overloaded circuit, a faulty charger was sitting right there the whole time, unfound, because nobody stopped to actually look.

A beeping UPS is not an emergency. It’s a question. Before you spend anything, take ten minutes to answer that question properly. The cause is almost always something simple. The fix is almost always cheap. The only thing that makes it expensive is skipping the diagnosis and going straight to the parts.
