Installing a home solar system looks straightforward on paper: panels on the roof, wires to an inverter, batteries (optional) and you’re producing clean energy. But after reviewing dozens of small residential installations over the years especially DIY and budget contractor jobs I’ve seen one consistent pattern:

Most system failures don’t start with the panels.
They start with wiring mistakes.

In one case, a homeowner called because their inverter kept shutting down every afternoon. The panels were fine. The batteries were new. The issue? Undersized DC cables overheating under load.

Small wiring errors can reduce performance, damage equipment, and in worst cases, create fire hazards. That’s why understanding common wiring mistakes isn’t optional it’s essential for safety and long-term reliability.

This guide explains the most frequent solar wiring errors, why they happen, and how to prevent them using real-world standards and best practices.

Why Proper Solar Wiring Matters

Solar systems operate under high DC voltage and current. Unlike AC, DC arcs can be harder to extinguish, which makes correct wiring and protection critical.

According to the National Electrical Code (NEC) published by the National Fire Protection Association (NFPA), solar PV systems must meet strict conductor sizing, grounding and overcurrent protection requirements. Poor wiring not only violates electrical codes it increases risk.

Improper wiring can lead to:

• Voltage drop and reduced system efficiency
• Overheating and insulation damage
• Inverter errors and shutdowns
• Battery degradation
• Electrical fires

Now let’s break down the most common mistakes.

1. Using Undersized Cables

The Problem

One of the most common errors in home solar installations is selecting cables that are too small for the current they carry.

Many installers focus on panel wattage but forget to calculate:

• Maximum current (Imp and Isc)
• Distance between panels and inverter
• Voltage drop percentage
• Temperature correction factors

When cables are undersized:

• Resistance increases
• Heat builds up
• Voltage drops across long runs
• Efficiency declines

Learn more about solar panel efficiency problems and solutions.

Why It Happens

DIY installers often reuse standard electrical wires instead of solar-rated PV cables. Others underestimate cable length impact.

The NEC Article 690 requires conductors to be sized at 125% of the maximum continuous current. Skipping this step is a serious compliance issue.

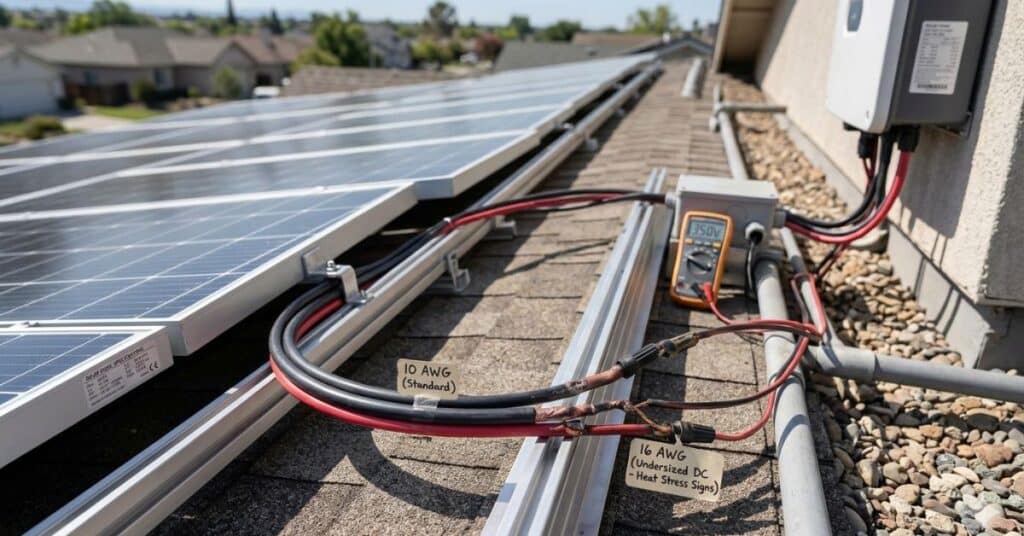

A homeowner installed a 5kW system with 6mm² cable across a 25-meter run. By midday, cable temperature exceeded safe limits, causing:

• Inverter low-voltage warnings
• 6–8% energy loss daily
• Insulation discoloration

Upgrading to properly sized 10mm² solar-rated cable solved the issue immediately.

2. Poor Grounding and Bonding

Why Grounding Is Critical

Solar panels are exposed to weather, lightning and environmental static. Without proper grounding:

• Surge damage becomes more likely
• Shock hazards increase
• Equipment lifespan decreases

The NEC and many local electrical authorities require:

• Equipment grounding conductors
• Ground rods (where applicable)
• Proper bonding between metallic components

Common Grounding Mistakes

• Not bonding panel frames together
• Missing grounding lugs
• Improper ground rod installation
• Using random screws instead of listed grounding hardware

Improper grounding doesn’t always cause immediate failure which makes it dangerous. Problems may appear only during storms or surges.

In a rural installation, lightning struck nearby. The system lacked proper grounding bonding between rails and panels.

Result:

• Damaged charge controller
• Burned inverter input stage
• Total repair cost exceeded installation savings

Proper grounding would likely have prevented most of the damage.

3. Incorrect Series and Parallel Connections

The Confusion

Solar panels can be wired:

• In series (increase voltage)
• In parallel (increase current)

Improper configuration can:

• Exceed inverter voltage limits
• Overload charge controllers
• Reduce system performance

This mistake is common when installers mix panel models or ignore temperature voltage rise.

The Technical Detail

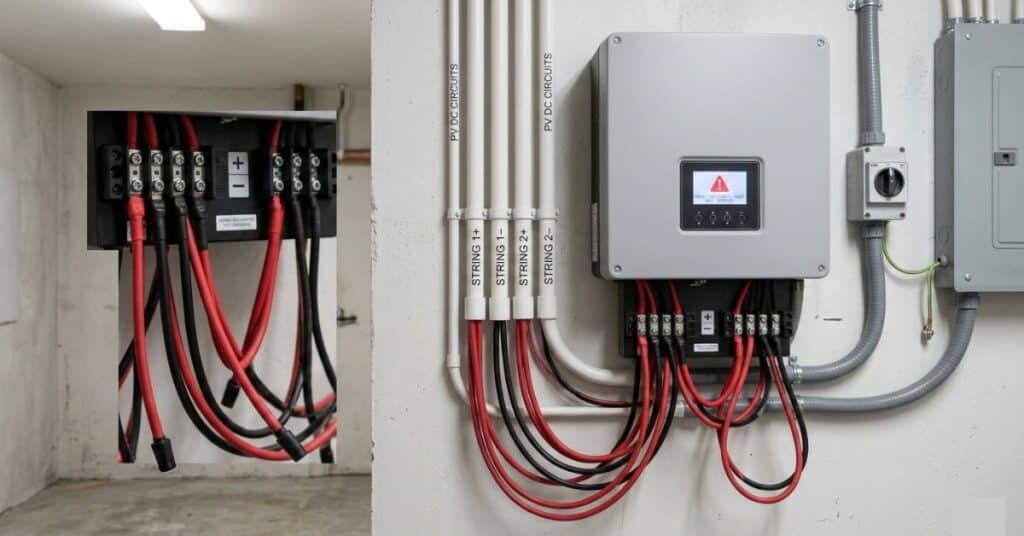

Open-circuit voltage (Voc) increases in cold weather. If panels are wired in series without calculating temperature-adjusted Voc, winter conditions can push voltage beyond inverter limits.

Manufacturers clearly list maximum input voltage in inverter datasheets. Ignoring this is a common oversight.

A 48V inverter rated for 500V max input received a cold-weather spike of 535V due to incorrect series calculation.

The inverter failed during winter startup.

The issue wasn’t defective equipment it was wiring design.

4. Loose Connections and Poor Terminations

Loose connections are one of the leading causes of electrical fires in residential systems.

Common causes:

• Improper crimping of MC4 connectors
• Using pliers instead of certified crimp tools
• Not tightening terminal lugs to torque specifications
• Mixing connector brands (not recommended)

Loose connections cause:

• Arcing
• Heat buildup
• Melted connectors
• System shutdown

MC4 connectors should be crimped using manufacturer-approved tools. Mixing incompatible connectors voids warranties and creates resistance points.

5. No Proper Overcurrent Protection

Solar systems require fuses or breakers for:

• Panel strings
• Battery banks
• Inverter DC input

Skipping protection devices may reduce upfront cost but dramatically increases risk.

The U.S. Department of Energy and solar installation standards recommend:

• String fuses for parallel arrays
• DC-rated breakers
• Battery-side fuse protection

Without these, a short circuit can cause catastrophic failure.

6. Incorrect Battery Wiring (If Using Storage)

Battery wiring mistakes are especially dangerous.

Common errors include:

• Mixing battery ages or brands
• Unequal cable lengths in parallel banks
• Undersized battery interconnect cables
• Poor ventilation in battery rooms

Unequal cable lengths cause uneven charging and premature battery wear.

According to research from Battery University, uneven resistance in parallel battery banks leads to imbalance and capacity loss.

7. Ignoring Ventilation and Heat Management

Solar wiring is often installed in hot environments rooftops, attics, enclosed spaces.

Heat increases resistance and reduces cable ampacity.

Installers must account for:

• Ambient temperature correction
• Conduit fill limits
• Proper airflow around inverters

Overheating shortens lifespan and can degrade insulation over time.
Learn how to avoid high risk by studying this battery safety tips.

8. Mixing AC and DC Wiring Improperly

AC and DC wiring should be:

• Clearly separated
• Properly labeled
• Routed according to code

Running DC cables alongside AC lines without separation increases interference and inspection failure risk.

Proper labeling is also required under NEC guidelines to ensure emergency responders understand system layout.

How to Avoid These Mistakes

The U.S. Department of Energy explains that proper system design and installation are critical for long-term solar performance.
Here’s a practical checklist:

Before Installation

• Calculate maximum current and voltage
• Size conductors using 125% rule
• Account for temperature adjustments
• Confirm inverter input limits

During Installation

• Use solar-rated PV cables
• Use certified crimp tools
• Torque connections to manufacturer specs
• Install proper fuses and breakers
• Bond and ground correctly

After Installation

• Test voltage at array and inverter
• Check thermal performance under load
• Inspect connectors for heat
• Label all circuits clearly

When to Hire a Licensed Professional

DIY solar installation can work but only if you understand electrical principles and local codes.

You should hire a licensed electrician if:

• Your system connects to the grid
• Local regulations require inspection
• You’re installing battery storage
• You’re unsure about conductor sizing

Electrical mistakes are rarely forgiving.

Conclusion: Solar Wiring Is the Backbone of Your System

Panels get the attention. Inverters get the spotlight.
But wiring determines whether your system runs safely for 20+ years.

Most failures I’ve seen weren’t caused by bad equipment they were caused by shortcuts in installation.

If you take one thing from this guide, let it be this:

Correct conductor sizing, grounding and protection devices are not optional they are foundational.

Follow code. Use proper tools. Verify calculations. And when in doubt, consult a qualified professional.

A properly wired solar system is not just efficient, it’s safe.
