What Happens When Battery Terminals Corrode? Leave a comment

A few years ago, I was called to inspect a small off-grid solar setup that kept shutting down at night. The owner had already replaced the inverter and even swapped out the battery bank an expensive mistake. The real problem? Severely corroded battery terminals.

The batteries themselves were fine. But thick, chalky buildup around the terminals had increased resistance so much that voltage dropped under load. Once we cleaned the terminals and resecured the connections, the system stabilized immediately.

Battery terminal corrosion is often dismissed as “just cosmetic.” It isn’t. It can reduce performance, cause voltage drops, damage electrical components, and even create safety hazards if ignored.

In this article, we’ll break down:

• Why battery terminals corrode
• What actually happens electrically
• The risks involved
• How to prevent and fix it properly
• Real-world examples from vehicles and solar systems

Why Do Battery Terminals Corrode?

Battery terminal corrosion typically appears as a white, bluish, or greenish powder around the metal connectors. It’s most common in lead-acid batteries, including:

• Car batteries
• Deep-cycle solar batteries
• Marine batteries
• Backup power systems

The Chemistry Behind It

In lead-acid batteries, corrosion forms when:

1. Hydrogen gas escapes during charging.
2. Acid vapors react with metal terminals.
3. The reaction forms lead sulfate or copper sulfate compounds.

According to the U.S. Department of Energy’s battery basics guide, lead-acid batteries release small amounts of gas during charging, especially when overcharged or poorly ventilated. This is normal but it contributes to terminal corrosion over time.

Temperature fluctuations, humidity and poor maintenance accelerate the process.

What Actually Happens When Terminals Corrode?

Corrosion doesn’t just sit there. It affects the entire electrical system.

1. Increased Electrical Resistance

Electricity flows best through clean, tight metal connections.

Corrosion creates:

• Surface buildup
• Microscopic gaps
• Reduced metal-to-metal contact

This increases resistance at the connection point.

Higher resistance means:

• Voltage drop
• Reduced current flow
• Heat generation

In DC systems like solar setups or vehicles, even a small resistance increase can cause noticeable performance issues.

2. Voltage Drop Under Load

This is one of the most common issues that often goes unnoticed.

When you measure battery voltage at rest, it might look normal (e.g., 12.6V). But under load when starting a car or powering an inverter the voltage can collapse due to poor terminal contact.

The National Renewable Energy Laboratory (NREL) emphasizes that connection integrity is critical in DC systems to avoid efficiency losses and performance instability.

In practical terms:

• Lights may flicker
• Inverters may shut down
• Engines may crank slowly
• Solar charge controllers may show errors

3. Overheating at the Connection Point

Corrosion increases resistance. Resistance produces heat.

Heat buildup at battery terminals can:

• Melt terminal covers
• Damage cable insulation
• Loosen connections further
• Increase fire risk in extreme cases

This is especially dangerous in high-current systems such as:

• Off-grid solar battery banks
• Marine systems
• RV power systems

4. Accelerated Battery Wear

Weak or loose connections force the battery to work harder.

When current flow is restricted:

• Charging becomes inefficient
• Batteries may undercharge
• Sulfation risk increases

According to guidance from organizations like Battery Council International, improper charging and poor connections are major contributors to premature battery failure.

Corrosion doesn’t just affect performance, it shortens lifespan.

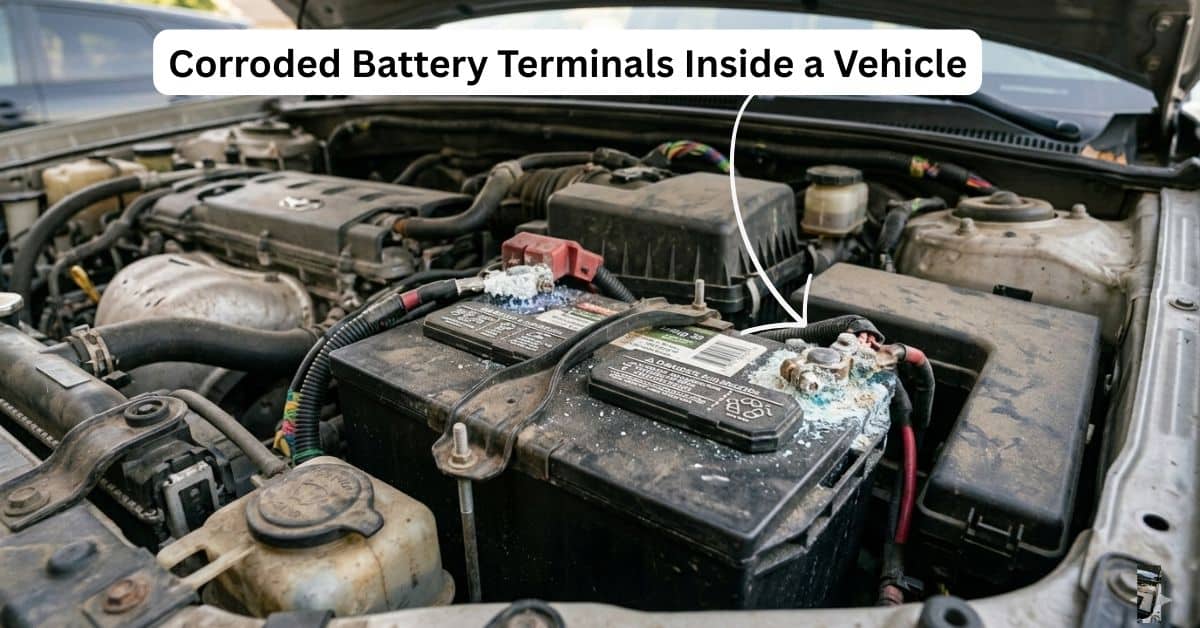

Car That Wouldn’t Start

A client reported a “dead battery.” The vehicle was only two years old.

Symptoms:

• Clicking sound when turning key
• Dim dashboard lights
• Battery tested at 12.5V

The culprit? Heavy corrosion on the positive terminal.

After:

• Disconnecting the battery
• Cleaning with a baking soda solution
• Brushing terminals with a wire brush
• Applying protective grease

The car started instantly.

The battery wasn’t dead the connection was compromised.

Off-Grid Solar System Shutdowns

In a small rural solar installation:

• Inverter shut down every evening
• Batteries tested healthy
• Solar panels producing correctly

Investigation revealed corrosion buildup on the negative busbar connection.

Under heavy nighttime load:

• Voltage dropped below inverter cutoff threshold
• System shut down automatically

After cleaning and tightening:

• Voltage stabilized
• No further shutdowns occurred

This case illustrates how corrosion can mimic more serious system faults.

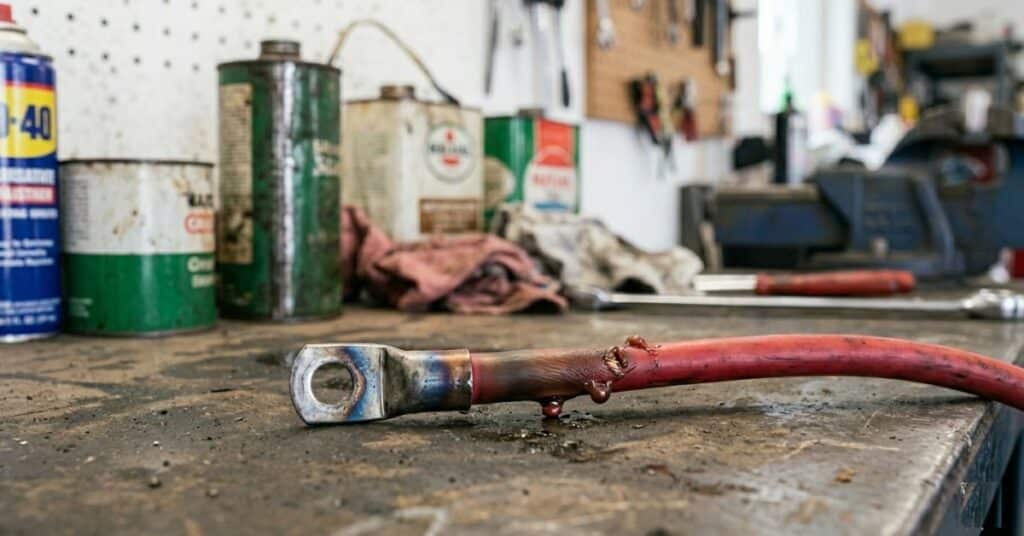

Marine Battery Fire Risk

In a marine application, a boat owner noticed a burning smell near the battery compartment.

Inspection found:

• Loose corroded terminals
• Melted insulation near the connector
• Heat damage around cable lugs

High resistance from corrosion caused overheating during engine start cycles.

Fortunately, it was caught early. Left unattended, it could have led to electrical fire.

Warning Signs of Battery Terminal Corrosion

Look for:

• White, blue, or green powder around terminals
• Swollen cable ends
• Slow engine cranking
• Flickering lights
• Random inverter shutdowns
• Warm battery cables

If you see corrosion, address it immediately.

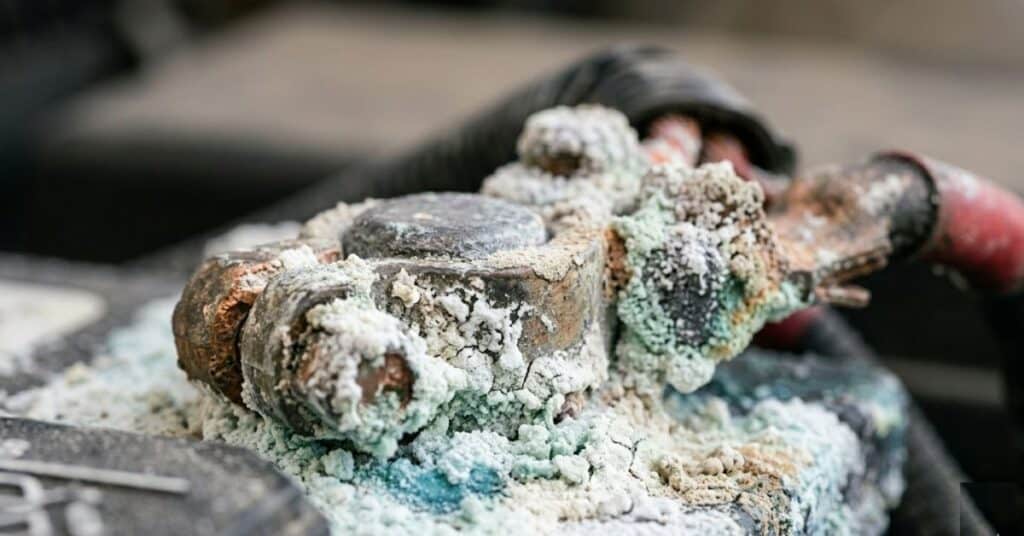

How to Safely Clean Corroded Battery Terminals

Before cleaning:

• Wear gloves
• Wear safety glasses
• Turn off connected devices
• Disconnect the negative terminal first

Cleaning Steps

1. Mix baking soda with water.
2. Apply to corroded area.
3. Scrub with a wire brush.
4. Rinse with clean water.
5. Dry completely.
6. Reconnect terminals tightly (positive first, then negative).
7. Apply dielectric grease or petroleum jelly to protect.

For larger systems, ensure proper torque specifications are followed when reconnecting terminals.

How to Prevent Terminal Corrosion

Prevention is easier than repair.

1. Keep Terminals Tight

Loose connections accelerate corrosion and resistance buildup.

2. Use Protective Coatings

Options include:

• Dielectric grease
• Petroleum jelly
• Anti-corrosion terminal sprays

3. Avoid Overcharging

Overcharging increases gas release and acid vapor.

Using a quality charge controller (especially in solar systems) helps regulate voltage properly.

4. Ensure Proper Ventilation

Poor airflow increases moisture and acid vapor buildup.
Explore our guide about proper ventilation.

5. Perform Routine Inspections

Check terminals:

• Every 3–6 months for vehicles
• Monthly for off-grid solar systems

Is Corrosion Always a Battery Failure?

Not necessarily.

Corrosion usually indicates:

• Normal chemical reaction
• Environmental exposure
• Maintenance neglect

However, excessive corrosion may signal:

• Overcharging
• Internal battery leakage
• Faulty charging system

If corrosion returns quickly after cleaning, test the charging voltage.

When Should You Replace the Battery?

Consider replacement if:

• Terminals are severely eaten away
• Posts are cracked
• Battery case is bulging
• Voltage fails load test

If only the terminal clamp is damaged, you can often replace the connector instead of the entire battery.

The Bigger Picture: Why This Matters

Battery systems whether in cars, solar installations or backup power systems depend on low-resistance connections.

The International Electrotechnical Commission (IEC) emphasizes proper connection standards in electrical systems to maintain safety and performance integrity.

Small details like terminal cleanliness may seem minor but they determine whether your system operates efficiently or unpredictably.

Ignoring corrosion can lead to:

• Reduced efficiency
• Unexpected shutdowns
• Shortened battery life
• Safety risks

Final Thoughts: Small Problem, Big Impact

Battery terminal corrosion is quiet. It builds slowly. It doesn’t usually cause dramatic failure overnight.

But over time, it reduces performance, increases resistance, and can lead to avoidable damage.

From vehicles to solar systems, I’ve seen cases where thousands were spent replacing equipment that wasn’t faulty, the connection was.

A simple inspection and cleaning routine can:

• Restore lost performance
• Extend battery life
• Prevent safety risks
• Save significant money

If you’re running a solar setup, vehicle battery or backup system, add terminal checks to your regular maintenance schedule.

And if you’ve experienced battery corrosion issues yourself, share your story in the comments your experience might help someone else avoid an expensive mistake.
