LiitoKala Lii-600 LCD 18650 1.2V 3.7V 14500 16340 18350 18500 21700 26700 26650 AA AAA NiMH/CD Lithium-ion Battery Charger in Pakistan

LiitoKala Lii-600 Battery Charger Specific parameters

Input voltage: DC 12V/5A
Output voltage: DC 4.2V / DC 1.48V

Output current: Lithium battery charging current: (250mA / 500mA /1000mA/ 1500mA / 2000mA / 3000mA)*4
NiMH battery charging current: (250mA / 500mA /1000mA)*4

Discharge current: 250mA / 500mA /750mA

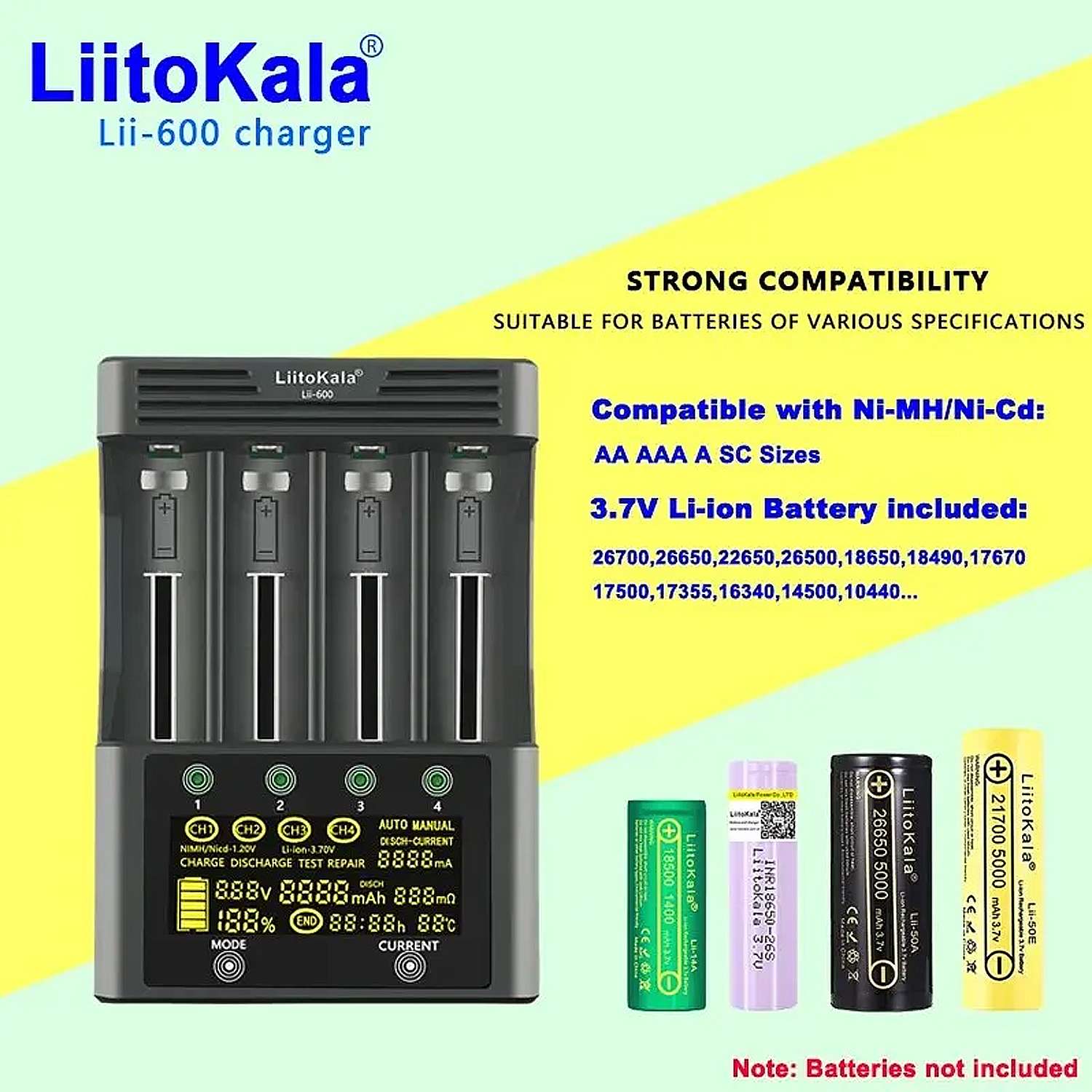

Rechargeable battery specifications: 26650,21700,18650,18350, 20650,14500, AA, AAA, etc.

Termination method: intelligent voltage monitoring

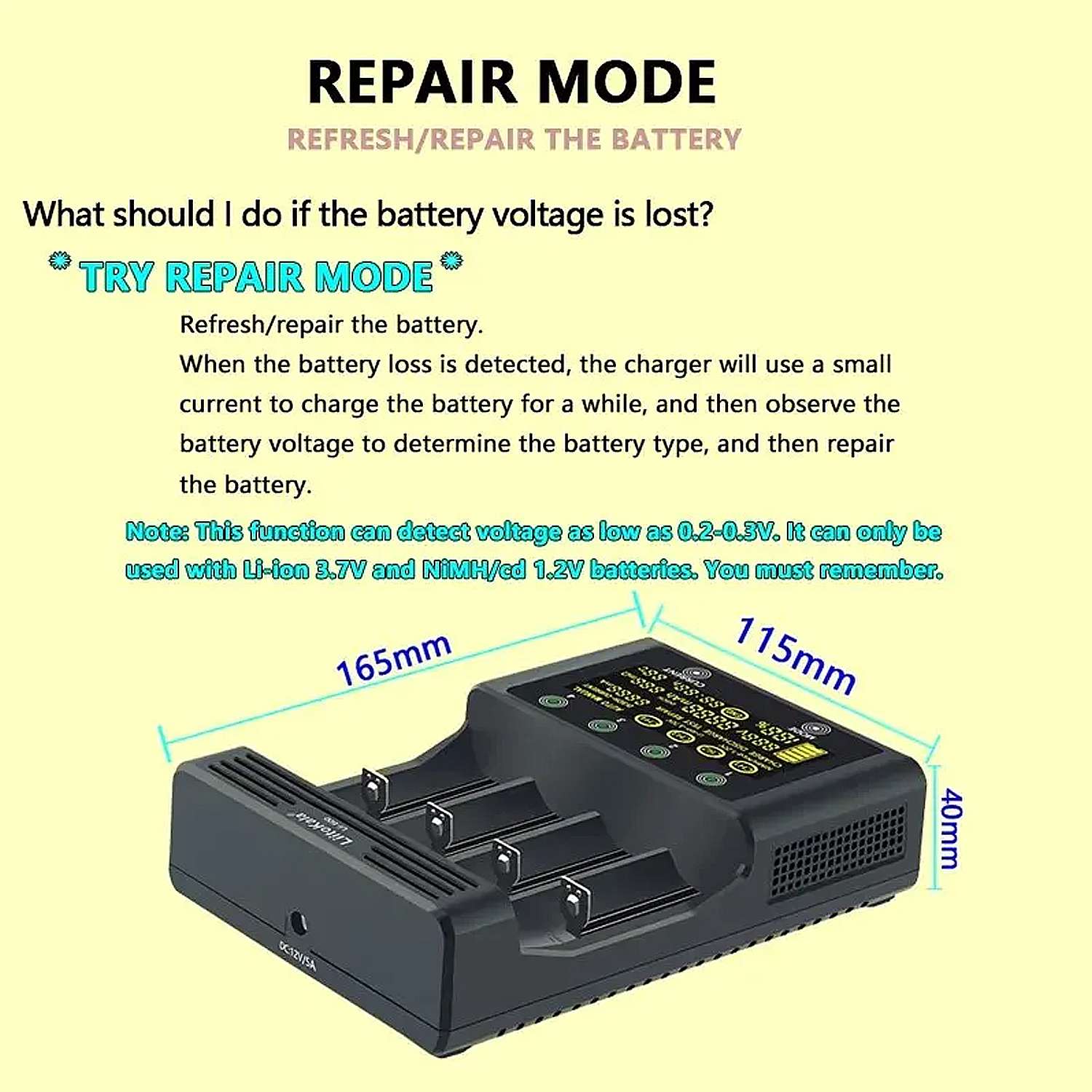

Dimensions: 165mm (length) * 115mm (width) * 40mm (height).

Features

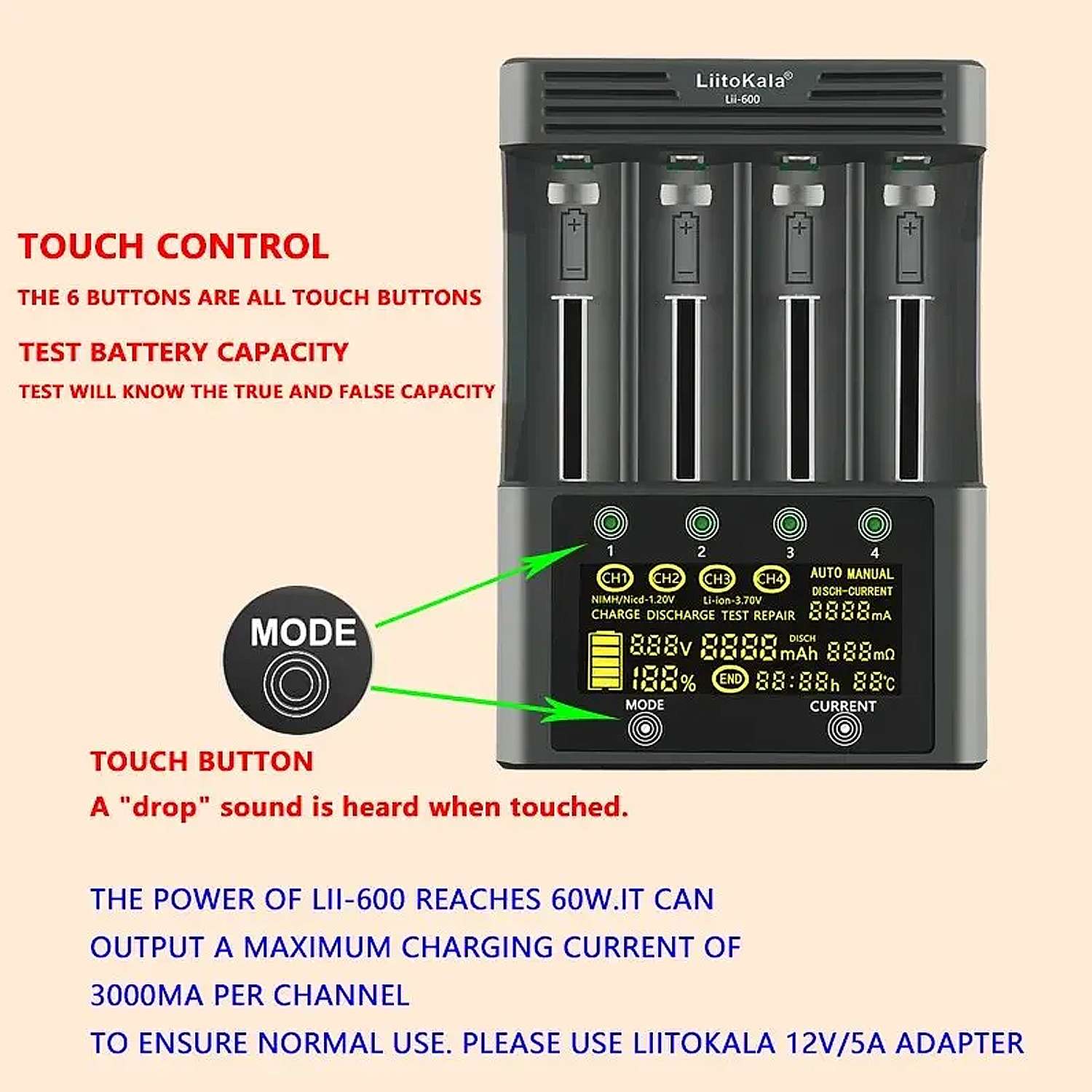

1. Brand new touch control function;

2. Four slots work independently;

3. It has two working modes: automatic AUTO and manual MANUAL; (the system defaults to automatic AUTO, which automatically distributes current)

4. Various optional charging currents: 250mA/500mA/1000mA/1500mA/2000mA/2500mA/3000mA;

5. Three-stage discharge current: 250mA/500mA/750mA;

6. It can charge rechargeable batteries of different specifications (18650/26650…/AA/AAA) at the same time;

7. This product adopts an independent LCD display, including battery type (Li-ion-3.7V, Ni-MH1.2V), working mode (AUTO/MANUAL), battery channel (CH1-CH4), working mode (CHARGE charging mode/DISCHARGE discharging mode/TEST detection mode/REPAIR repair mode), charge and discharge capacity (mAh), charge and discharge time (h), charge and discharge current (mA), battery voltage (V), battery percentage %, Parameters such as battery internal resistance (mΩ), temperature ℃, etc. are detailed and clear at a glance;

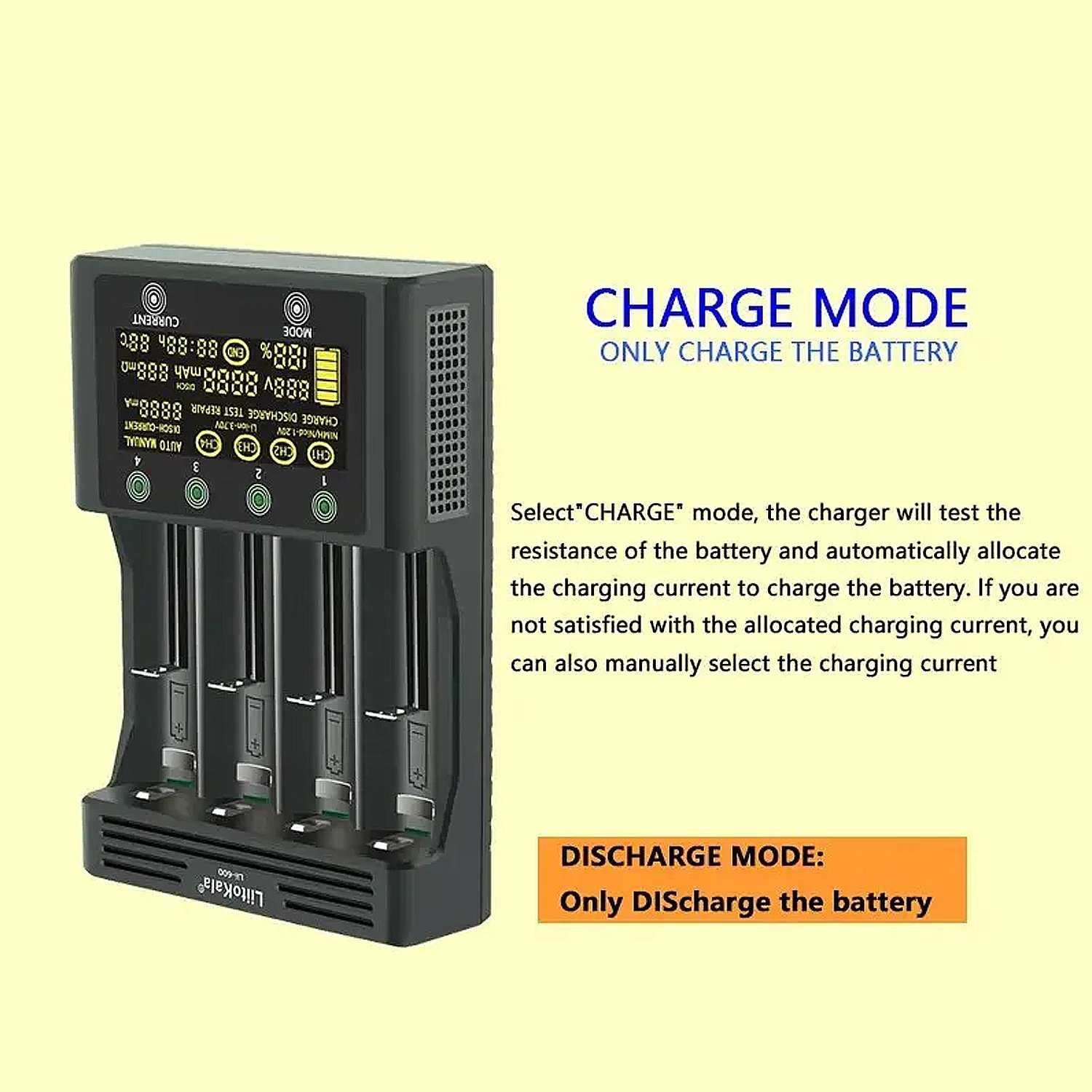

8. In CHARGE mode, 4 channels work independently, each channel can choose different charging current and detect charging capacity;

9. In DISCHARGE mode, 4 channels work independently, each channel can choose different discharge current and detect discharge capacity;

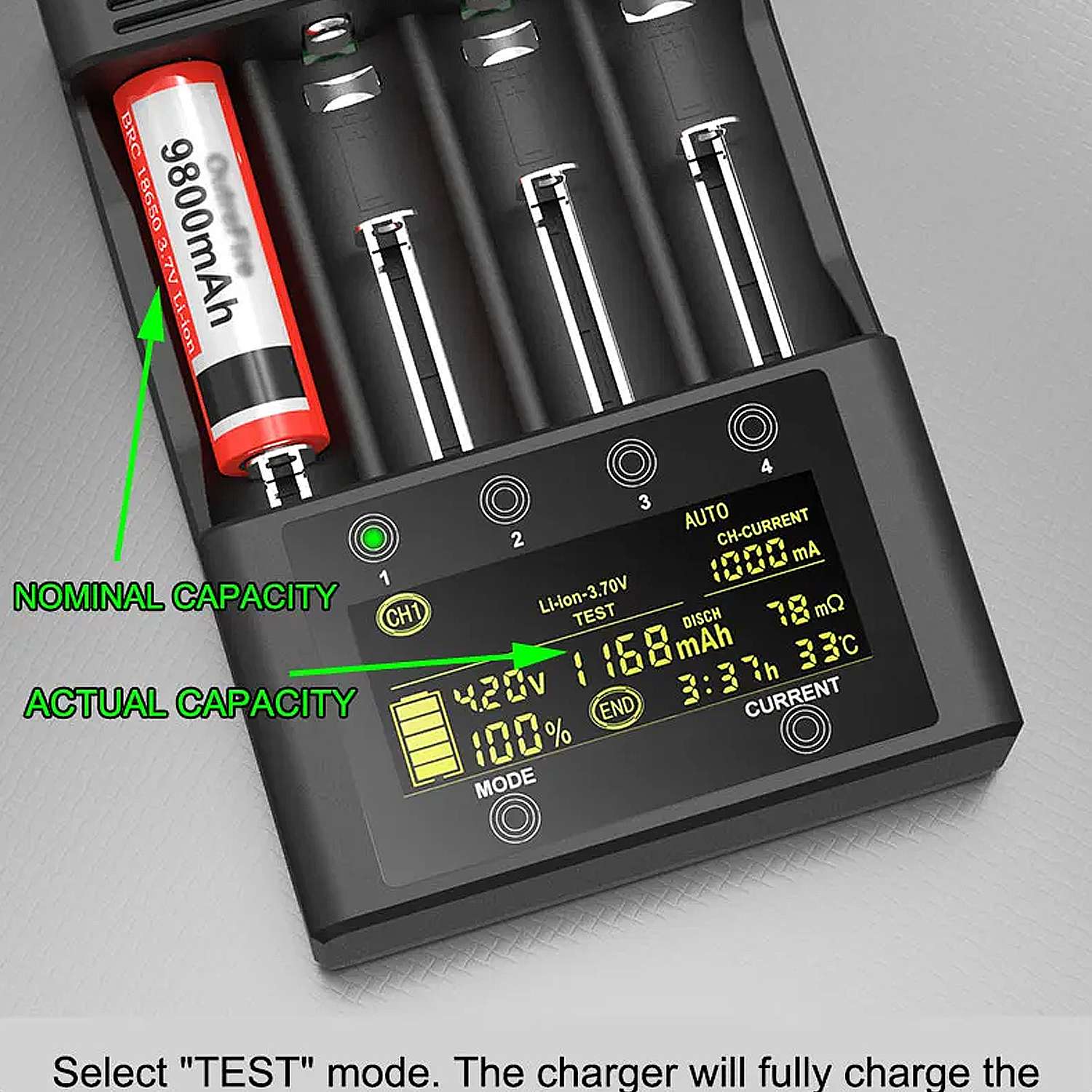

10. In TEST mode, the normal battery capacity detection process includes three steps (1 charge, 2 discharge, 3 recharge) to detect the battery capacity process;

11. Different channels can work in different modes (CHARGE, DISCHARGE and TEST, REPAIR); independently set charging/discharging capacity detection/normal capacity detection functions;

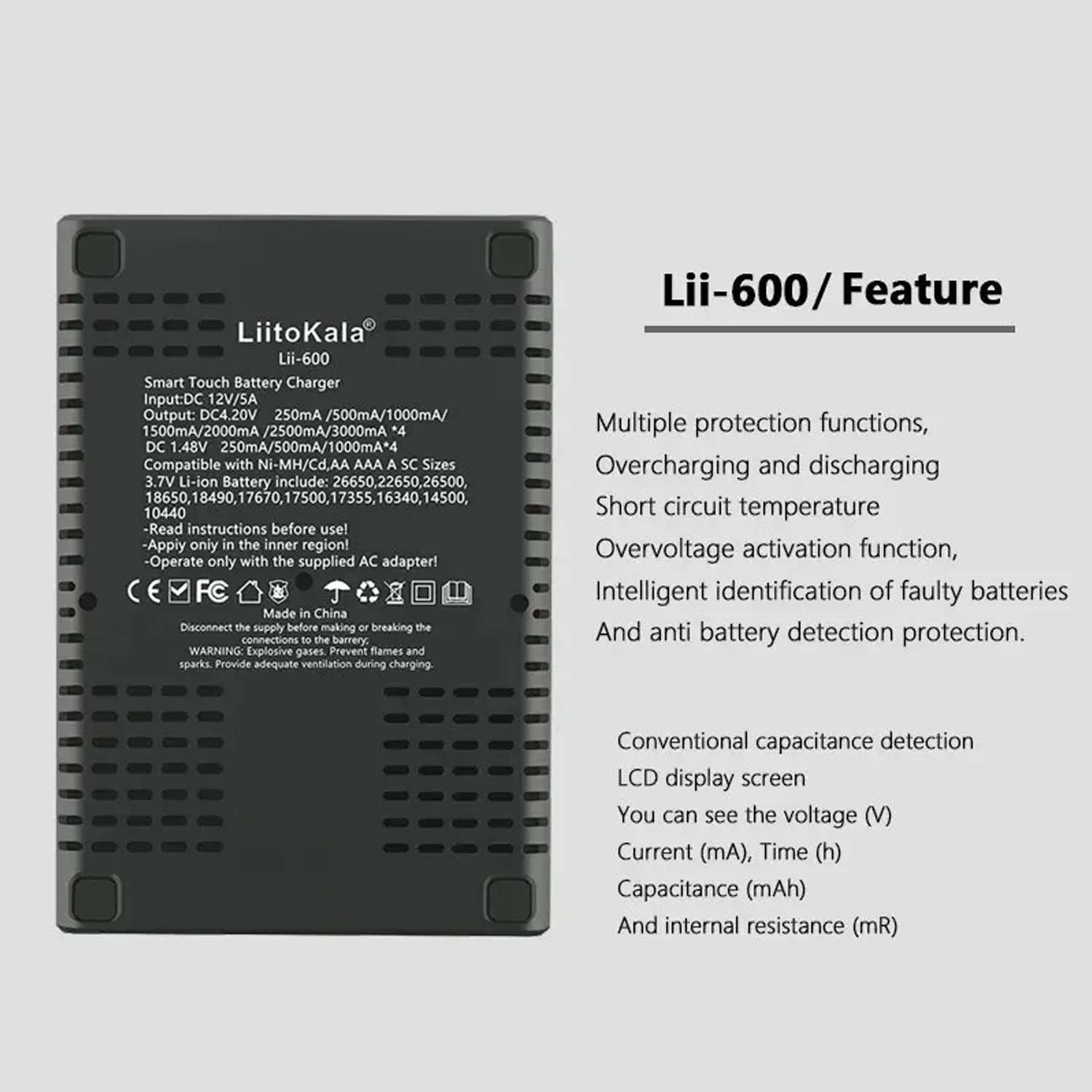

12. Multiple protection functions: overcharge and over discharge, short circuit, temperature, 0V voltage activation function, (-ΔV&0ΔV), 1.65V-2.2V can not charge function, intelligent identification of bad batteries and reverse battery detection protection.
